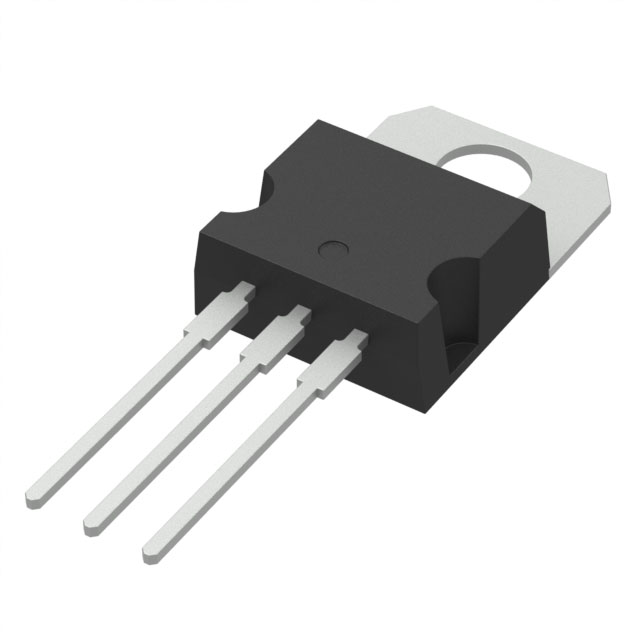

STPS16L40CT

Part Number
STPS16L40CT
Manufacturer STMicroelectronics
Other Part Numbers
497-12630-5-ND
497-12630-5
-497-12630-5
STPS16L40CT-ND
Description DIODE ARRAY SCHOTT 40V 8A TO220
Detailed Description Diode Array 1 Pair Common Cathode 40 V 8A Through Hole TO-220-3
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tube
Part Status Obsolete
Package / Case TO-220-3
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 8A
Supplier Device Package TO-220
Operating Temperature - Junction 150°C (Max)
Voltage - DC Reverse (Vr) (Max) 40 V
Voltage - Forward (Vf) (Max) @ If 500 mV @ 8 A
Current - Reverse Leakage @ Vr 700 µA @ 40 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STPS16L40CT

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
