STPR1020CB-TR

Part Number
STPR1020CB-TR
Manufacturer STMicroelectronics
Other Part Numbers
STPR1020CB-TR-ND
Description DIODE ARRAY GP 200V 5A DPAK

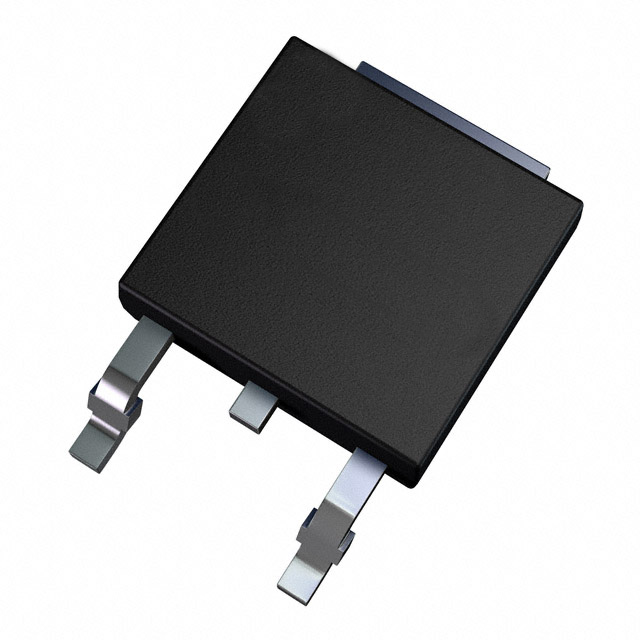

Detailed Description Diode Array 1 Pair Common Cathode 200 V 5A Surface Mount TO-252-3, DPAK (2 Leads + Tab), SC-63
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Technology Standard
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 5A
Supplier Device Package DPAK
Operating Temperature - Junction -65°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 200 V
Voltage - Forward (Vf) (Max) @ If 990 mV @ 5 A
Current - Reverse Leakage @ Vr 50 µA @ 200 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STPR1020CB-TR

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
