STP11NK40Z _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	STP11NK40Z
Manufacturer	STMicroelectronics
Other Part Numbers	497-7500-5-ND 497-7500-5 -497-7500-5 STP11NK40Z-ND

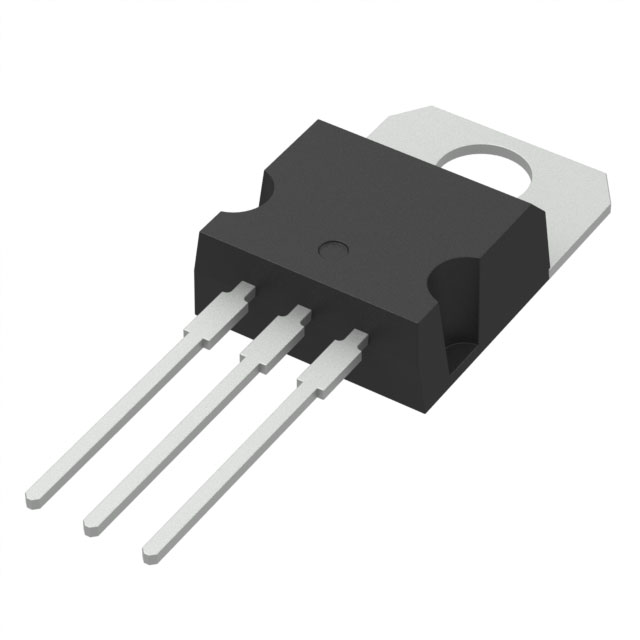

Description	MOSFET N-CH 400V 9A TO220AB
Detailed Description	N-Channel 400 V 9A (Tc) 110W (Tc) Through Hole TO-220
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		STMicroelectronics
Series		SuperMESH™
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		9A (Tc)
Rds On (Max) @ Id, Vgs		550mOhm @ 4.5A, 10V
Power Dissipation (Max)		110W (Tc)
Vgs(th) (Max) @ Id		4.5V @ 100µA
Supplier Device Package		TO-220
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		400 V
Gate Charge (Qg) (Max) @ Vgs		32 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		930 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
