SSM5H16TU,LF _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SSM5H16TU,LF
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	SSM5H16TULFTR-ND SSM5H16TULFCT-ND SSM5H16TULFDKR-ND SSM5H16TULFCT SSM5H16TU,LF(B SSM5H16TULFDKR SSM5H16TULFTR SSM5H16TU,LF(T
Description	MOSFET N-CH 30V 1.9A UFV
Detailed Description	N-Channel 30 V 1.9A (Ta) 500mW (Ta) Surface Mount UFV
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSIII
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

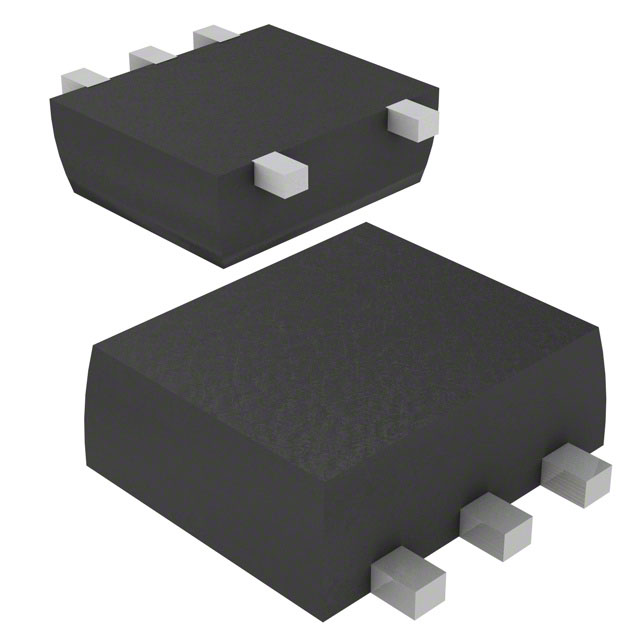

Package / Case		6-SMD (5 Leads), Flat Lead
Mounting Type		Surface Mount
Operating Temperature		150°C
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		1.9A (Ta)
Rds On (Max) @ Id, Vgs		133mOhm @ 1A, 4V
FET Feature		Schottky Diode (Isolated)
Power Dissipation (Max)		500mW (Ta)
Vgs(th) (Max) @ Id		1V @ 1mA
Supplier Device Package		UFV
Drive Voltage (Max Rds On, Min Rds On)		1.8V, 4V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		1.9 nC @ 4 V
Input Capacitance (Ciss) (Max) @ Vds		123 pF @ 15 V

RESOURCE TYPE		LINK
Datasheets		SSM5H16TU,LF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
