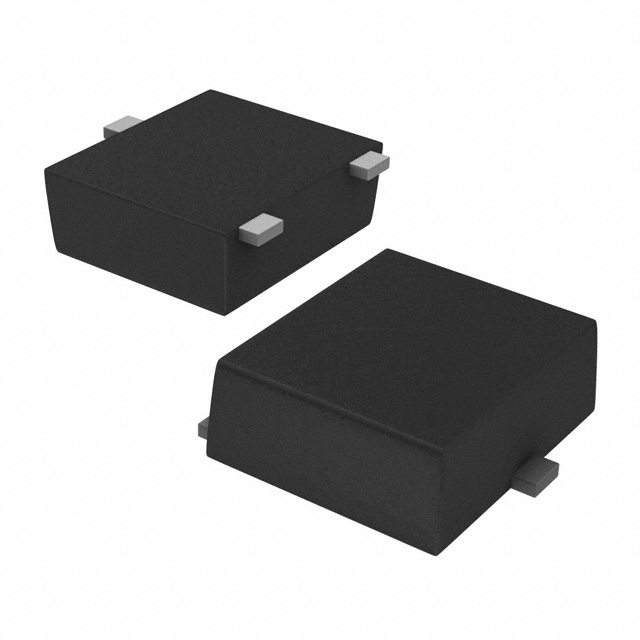

SSM3J117TU,LF

SSM3J117TU,LF

Part Number	SSM3J117TU,LF
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	SSM3J117TULFTR-ND SSM3J117TULFCT-ND SSM3J117TULFDKR-ND SSM3J117TULFCT SSM3J117TULFTR DF5G7M2NLF(D SSM3J117TULFDKR SSM3J117TU,LF(T SSM3J117TU,LF(B
Description	MOSFET P-CHANNEL 30V 2A UFM
Detailed Description	P-Channel 30 V 2A (Ta) 500mW (Ta) Surface Mount UFM
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSII
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		3-SMD, Flat Leads
Mounting Type		Surface Mount
Operating Temperature		150°C
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Ta)
Rds On (Max) @ Id, Vgs		117mOhm @ 1A, 10V
Power Dissipation (Max)		500mW (Ta)
Vgs(th) (Max) @ Id		2.6V @ 1mA
Supplier Device Package		UFM
Drive Voltage (Max Rds On, Min Rds On)		4V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Input Capacitance (Ciss) (Max) @ Vds		280 pF @ 15 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 20147

Can ship immediately.
