SQJ443EP-T1_GE3 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SQJ443EP-T1_GE3
Manufacturer	Vishay / Siliconix
Other Part Numbers	SQJ443EP-T1_GE3TR-ND SQJ443EP-T1_GE3CT-ND SQJ443EP-T1_GE3TR SQJ443EP-T1_GE3CT
Description	MOSFET P-CH 40V 40A PPAK SO-8
Detailed Description	P-Channel 40 V 40A (Tc) 83W (Tc) Surface Mount PowerPAK® SO-8
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series		TrenchFET®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

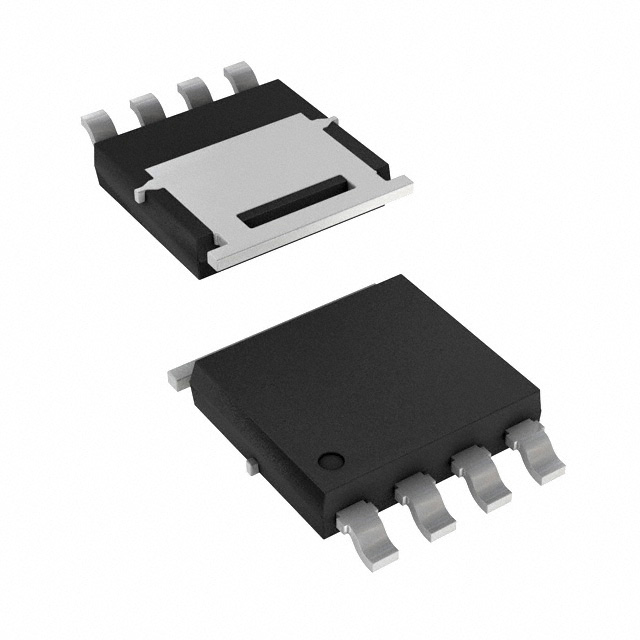

Package / Case		PowerPAK® SO-8
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TA)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		40A (Tc)
Rds On (Max) @ Id, Vgs		29mOhm @ 18A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		PowerPAK® SO-8
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		57 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2030 pF @ 20 V
Qualification		AEC-Q101

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
