SQD50034EL_GE3 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SQD50034EL_GE3
Manufacturer	Vishay / Siliconix
Other Part Numbers	SQD50034EL_GE3TR-ND SQD50034EL_GE3CT-ND SQD50034EL_GE3DKR-ND SQD50034EL_GE3DKR SQD50034EL_GE3TR SQD50034EL_GE3CT SQD50034EL_GE3-ND
Description	MOSFET N-CH 60V 100A TO252AA
Detailed Description	N-Channel 60 V 100A (Tc) 107W (Tc) Surface Mount TO-252AA
Manufacturer Standard Lead Time	42 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series		TrenchFET®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

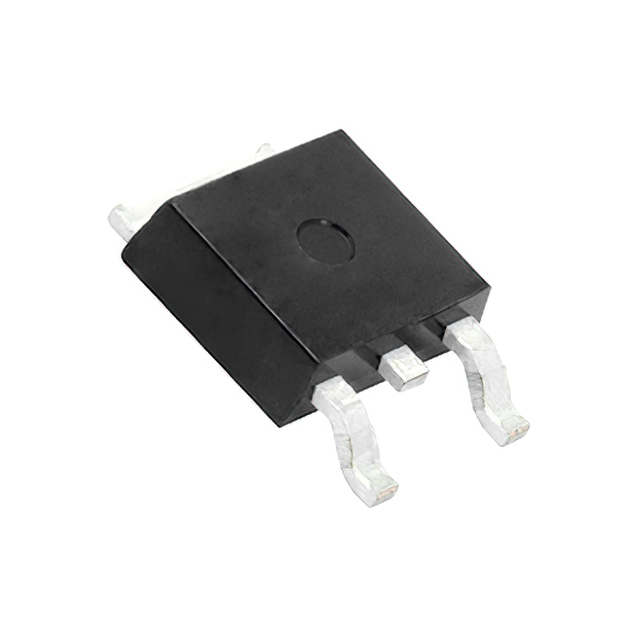

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		100A (Tc)
Rds On (Max) @ Id, Vgs		4mOhm @ 20A, 10V
Power Dissipation (Max)		107W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		TO-252AA
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		90 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		6100 pF @ 25 V
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		SQD50034EL_GE3

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
