SPW11N80C3FKSA1 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SPW11N80C3FKSA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	448-SPW11N80C3FKSA1-ND SPW11N80C3 SPW11N80C3IN SPW11N80C3IN-ND SPW11N80C3XTIN-ND SPW11N80C3IN-NDR SPW11N80C3X SPW11N80C3XTIN SPW11N80C3XK SP000013703 SPW11N80C3FKSA1-ND 448-SPW11N80C3FKSA1
Description	MOSFET N-CH 800V 11A TO247-3
Detailed Description	N-Channel 800 V 11A (Tc) 156W (Tc) Through Hole PG-TO247-3-1
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		CoolMOS™
Packaging		Tube
Part Status		Not For New Designs

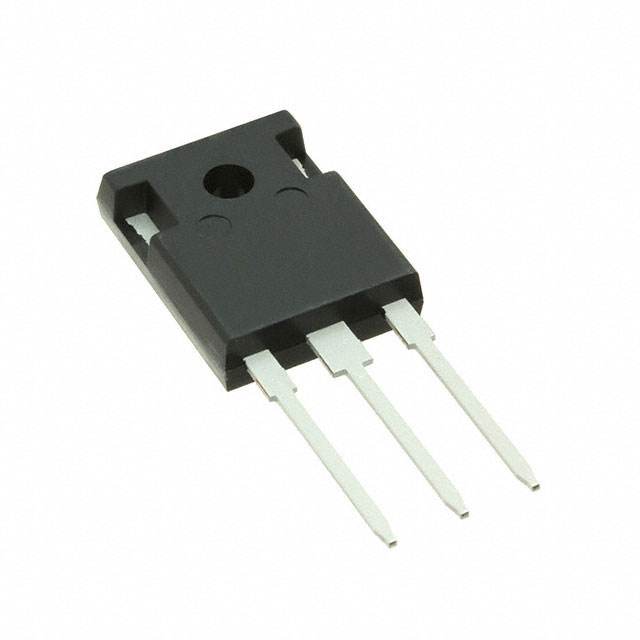

Package / Case		TO-247-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		11A (Tc)
Rds On (Max) @ Id, Vgs		450mOhm @ 7.1A, 10V
Power Dissipation (Max)		156W (Tc)
Vgs(th) (Max) @ Id		3.9V @ 680µA
Supplier Device Package		PG-TO247-3-1
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		800 V
Gate Charge (Qg) (Max) @ Vgs		85 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1600 pF @ 100 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

Not recommended for new design, minimums may apply.
