SPD07N60C3BTMA1 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SPD07N60C3BTMA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	SPD07N60C3BTMA1TR-ND SPD07N60C3BTMA1CT-ND SPD07N60C3INTR SPD07N60C3BTMA1CT SP000313947 SPD07N60C3BTMA1TR SPD07N60C3INTR-ND SPD07N60C3INCT SPD07N60C3INCT-ND
Description	MOSFET N-CH 650V 7.3A TO252-3
Detailed Description	N-Channel 650 V 7.3A (Tc) 83W (Tc) Surface Mount PG-TO252-3-11
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		CoolMOS™
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

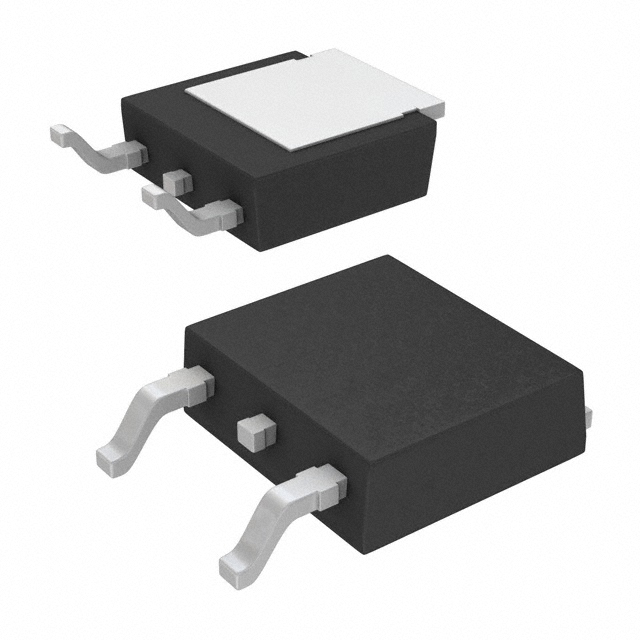

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		7.3A (Tc)
Rds On (Max) @ Id, Vgs		600mOhm @ 4.6A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		3.9V @ 350µA
Supplier Device Package		PG-TO252-3-11
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		650 V
Gate Charge (Qg) (Max) @ Vgs		27 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		790 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		SPD07N60C3BTMA1
Datasheets		Part Number Guide
Datasheets		Cover Tape Width Cancellation 14/Jul/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
