SPA21N50C3XKSA1 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SPA21N50C3XKSA1
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	SPA21N50C3XKSA1-ND SPA21N50C3 SPA21N50C3IN-NDR SPA21N50C3XK SP000216364 SPA21N50C3IN SPA21N50C3X SPA21N50C3XTIN-ND SPA21N50C3XTIN SPA21N50C3IN-ND
Description	MOSFET N-CH 560V 21A TO220-FP
Detailed Description	N-Channel 560 V 21A (Tc) 34.5W (Tc) Through Hole PG-TO220-3-31
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		CoolMOS™
Packaging		Tube
Part Status		Obsolete

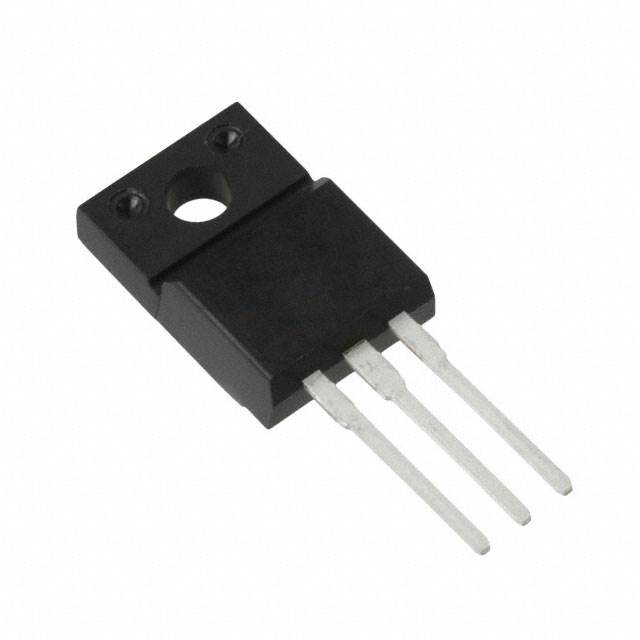

Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		21A (Tc)
Rds On (Max) @ Id, Vgs		190mOhm @ 13.1A, 10V
Power Dissipation (Max)		34.5W (Tc)
Vgs(th) (Max) @ Id		3.9V @ 1mA
Supplier Device Package		PG-TO220-3-31
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		560 V
Gate Charge (Qg) (Max) @ Vgs		95 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2400 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
