SKI10297 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SKI10297
Manufacturer	Sanken Electric Co., Ltd.
Other Part Numbers	SKI10297TR-ND SKI10297CT-ND SKI10297DKR-ND SKI10297 DK SKI10297CT SKI10297TR SKI10297DKR
Description	MOSFET N-CH 100V 34A TO263
Detailed Description	N-Channel 100 V 34A (Tc) 90W (Tc) Surface Mount TO-263

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanken Electric Co., Ltd.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

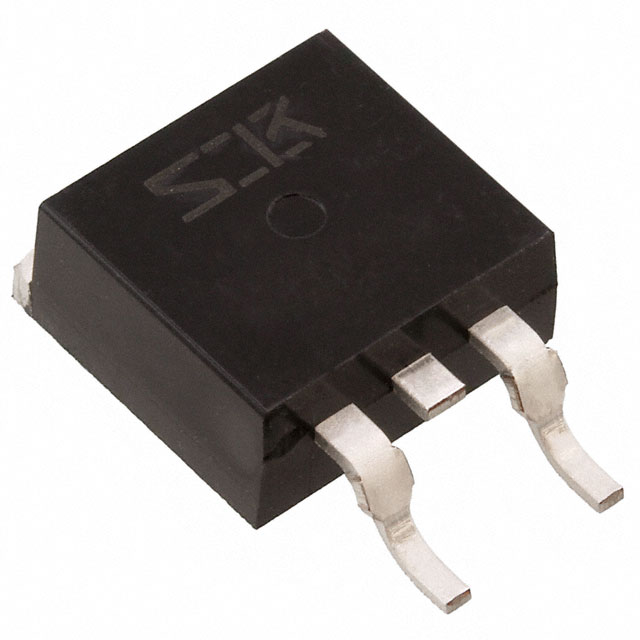

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		34A (Tc)
Rds On (Max) @ Id, Vgs		27.9mOhm @ 17.1A, 10V
Power Dissipation (Max)		90W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 650µA
Supplier Device Package		TO-263
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		100 V
Gate Charge (Qg) (Max) @ Vgs		35.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2540 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
