SIR124DP-T1-RE3 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SIR124DP-T1-RE3
Manufacturer	Vishay / Siliconix
Other Part Numbers	SIR124DP-T1-RE3TR-ND SIR124DP-T1-RE3CT-ND SIR124DP-T1-RE3DKR-ND SIR124DP-T1-RE3CT SIR124DP-T1-RE3TR SIR124DP-T1-RE3DKR
Description	MOSFET N-CH 80V 16.1A/56.8A PPAK
Detailed Description	N-Channel 80 V 16.1A (Ta), 56.8A (Tc) 5W (Ta), 62.5W (Tc) Surface Mount PowerPAK® SO-8
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series		TrenchFET® Gen IV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

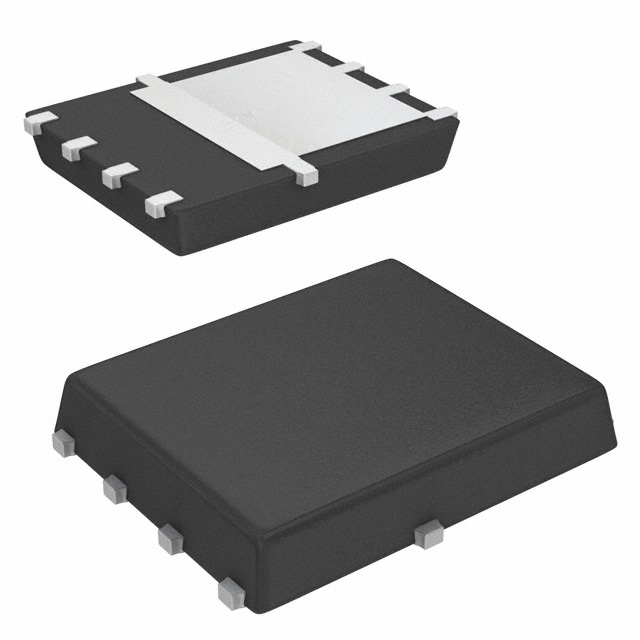

Package / Case		PowerPAK® SO-8
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		16.1A (Ta), 56.8A (Tc)
Rds On (Max) @ Id, Vgs		8.4mOhm @ 10A, 10V
Power Dissipation (Max)		5W (Ta), 62.5W (Tc)
Vgs(th) (Max) @ Id		3.8V @ 250µA
Supplier Device Package		PowerPAK® SO-8
Drive Voltage (Max Rds On, Min Rds On)		7.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		80 V
Gate Charge (Qg) (Max) @ Vgs		40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1666 pF @ 40 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
