SIB404DK-T1-GE3

SIB404DK-T1-GE3

Part Number	SIB404DK-T1-GE3
Manufacturer	Vishay / Siliconix
Other Part Numbers	SIB404DK-T1-GE3TR-ND SIB404DK-T1-GE3CT SIB404DK-T1-GE3DKR SIB404DK-T1-GE3-ND SIB404DK-T1-GE3TR
Description	MOSFET N-CH 12V 9A PPAK SC75-6
Detailed Description	N-Channel 12 V 9A (Tc) 2.5W (Ta), 13W (Tc) Surface Mount PowerPAK® SC-75-6

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series		TrenchFET®
Packaging		Tape & Reel (TR)
Part Status		Obsolete

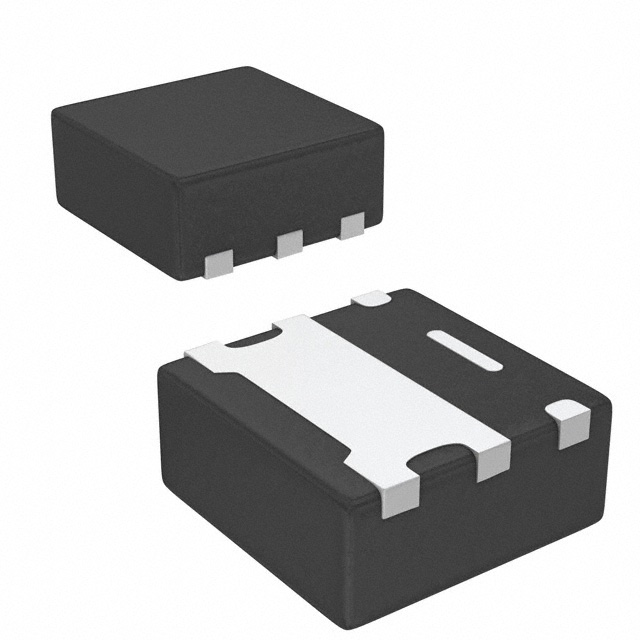

Package / Case		PowerPAK® SC-75-6
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		9A (Tc)
Rds On (Max) @ Id, Vgs		19mOhm @ 3A, 4.5V
Power Dissipation (Max)		2.5W (Ta), 13W (Tc)
Vgs(th) (Max) @ Id		800mV @ 250µA
Supplier Device Package		PowerPAK® SC-75-6
Drive Voltage (Max Rds On, Min Rds On)		4.5V
Vgs (Max)		±5V
Drain to Source Voltage (Vdss)		12 V
Gate Charge (Qg) (Max) @ Vgs		15 nC @ 4.5 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Obsolete

This product is no longer manufactured.
