SI4322DY-T1-E3 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	SI4322DY-T1-E3
Manufacturer	Vishay / Siliconix
Other Part Numbers	SI4322DY-T1-E3TR-ND SI4322DY-T1-E3CT-ND SI4322DY-T1-E3DKR-ND SI4322DYT1E3 SI4322DY-T1-E3DKR SI4322DY-T1-E3CT SI4322DY-T1-E3TR
Description	MOSFET N-CH 30V 18A 8SO
Detailed Description	N-Channel 30 V 18A (Tc) 3.1W (Ta), 5.4W (Tc) Surface Mount 8-SOIC

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series		TrenchFET®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

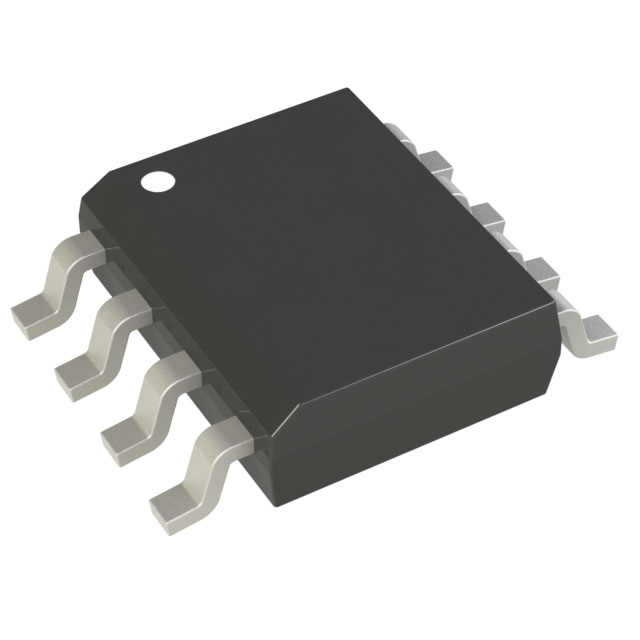

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		18A (Tc)
Rds On (Max) @ Id, Vgs		8.5mOhm @ 15A, 10V
Power Dissipation (Max)		3.1W (Ta), 5.4W (Tc)
Vgs(th) (Max) @ Id		3V @ 250µA
Supplier Device Package		8-SOIC
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		38 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1640 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
