Part Number |
SBR4045CTFP
|
---|---|
Manufacturer | Zetex Semiconductors (Diodes Inc.) |
Other Part Numbers |
SBR4045CTFP-ND
|
Description | DIODE ARR SBR 45V 20A ITO220AB |
Detailed Description | Diode Array 1 Pair Common Cathode 45 V 20A Through Hole TO-220-3 Full Pack, Isolated Tab |
Manufacturer Standard Lead Time | 8 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Zetex Semiconductors (Diodes Inc.) | |
Series |
SBR®
|
|
Packaging |
Tube
|
|
Part Status | Active | |

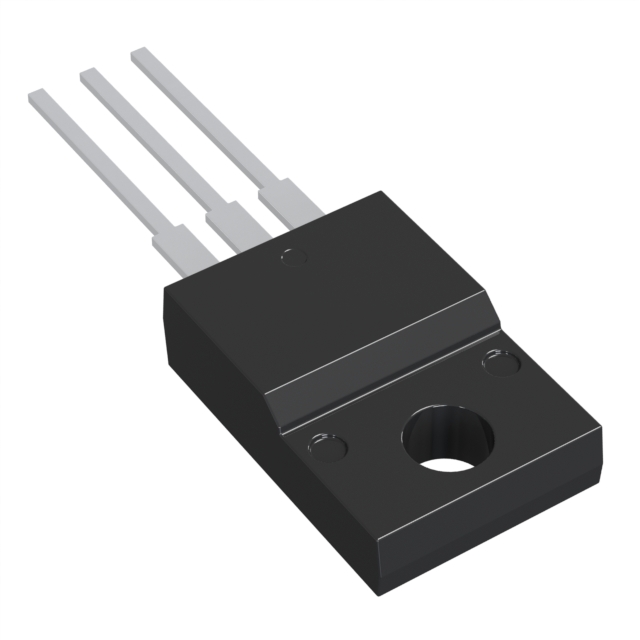

Package / Case | TO-220-3 Full Pack, Isolated Tab | |
Mounting Type | Through Hole | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Technology | Super Barrier | |
Diode Configuration | 1 Pair Common Cathode | |
Current - Average Rectified (Io) (per Diode) | 20A | |
Supplier Device Package | ITO-220AB | |
Operating Temperature - Junction | -65°C ~ 150°C | |
Voltage - DC Reverse (Vr) (Max) | 45 V | |
Voltage - Forward (Vf) (Max) @ If | 550 mV @ 20 A | |
Current - Reverse Leakage @ Vr | 500 µA @ 45 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | SBR4045CTFP | |
Datasheets | Diodes Environmental Compliance Cert | |
Datasheets | Mult Dev Assem/Wafer Chgs 13/Mar/2024 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.10.0080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
