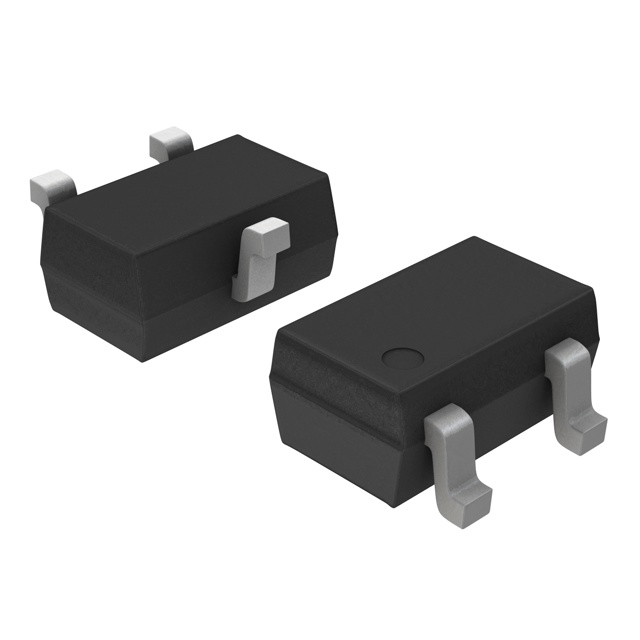

SBAT54CWT3G

Part Number
SBAT54CWT3G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
SBAT54CWT3G-ND
Description DIODE ARR SCHOT 30V 200MA SC70-3
Detailed Description Diode Array 1 Pair Common Cathode 30 V 200mA (DC) Surface Mount SC-70, SOT-323
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case SC-70, SOT-323
Mounting Type Surface Mount
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Supplier Device Package SC-70-3 (SOT323)
Operating Temperature - Junction -55°C ~ 125°C
Grade Automotive
Voltage - DC Reverse (Vr) (Max) 30 V
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK
Datasheets SBAT54CWT3G
Datasheets onsemi REACH
Datasheets onsemi RoHS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
