SBAS40-06LT1G

Part Number
SBAS40-06LT1G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
488-SBAS40-06LT1GTR-ND
488-SBAS40-06LT1GCT-ND
488-SBAS40-06LT1GDKR-ND
=SBAS40
488-SBAS40-06LT1GTR
488-SBAS40-06LT1GDKR
488-SBAS40-06LT1GCT
SBAS40-06LT1G-ND
Description DIODE ARR SCHOTT 40V 120MA SOT23

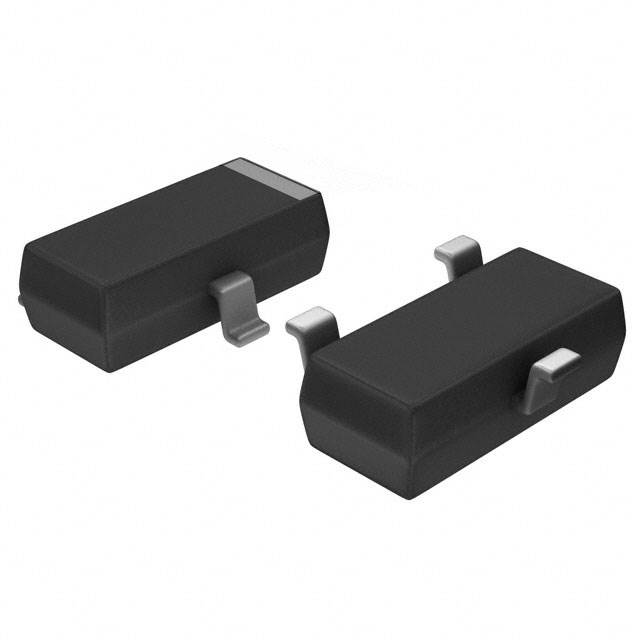

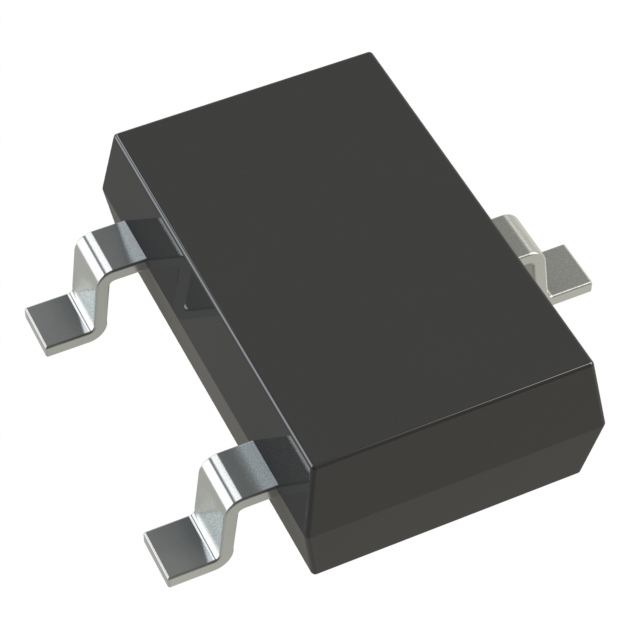

Detailed Description Diode Array 1 Pair Common Anode 40 V 120mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Manufacturer Standard Lead Time 8 weeks

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Speed Small Signal =< 200mA (Io), Any Speed
Technology Schottky
Diode Configuration 1 Pair Common Anode
Current - Average Rectified (Io) (per Diode) 120mA (DC)
Supplier Device Package SOT-23-3 (TO-236)
Operating Temperature - Junction -55°C ~ 150°C
Grade Automotive
Voltage - DC Reverse (Vr) (Max) 40 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 40 mA
Current - Reverse Leakage @ Vr 1 µA @ 25 V
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 29493

Can ship immediately.
