RW1A013ZPT2R _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	RW1A013ZPT2R
Manufacturer	ROHM Semiconductor
Other Part Numbers	RW1A013ZPT2RTR-ND RW1A013ZPT2RCT-ND RW1A013ZPT2RDKR-ND RW1A013ZPT2R-ND RW1A013ZPT2RTR RW1A013ZPT2RCT RW1A013ZPT2RDKR
Description	MOSFET P-CH 12V 1.5A 6WEMT
Detailed Description	P-Channel 12 V 1.5A (Ta) 400mW (Ta) Surface Mount 6-WEMT

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

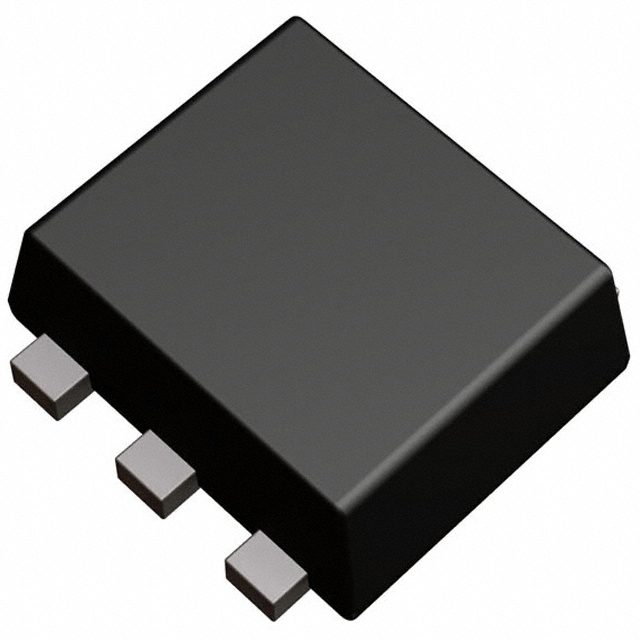

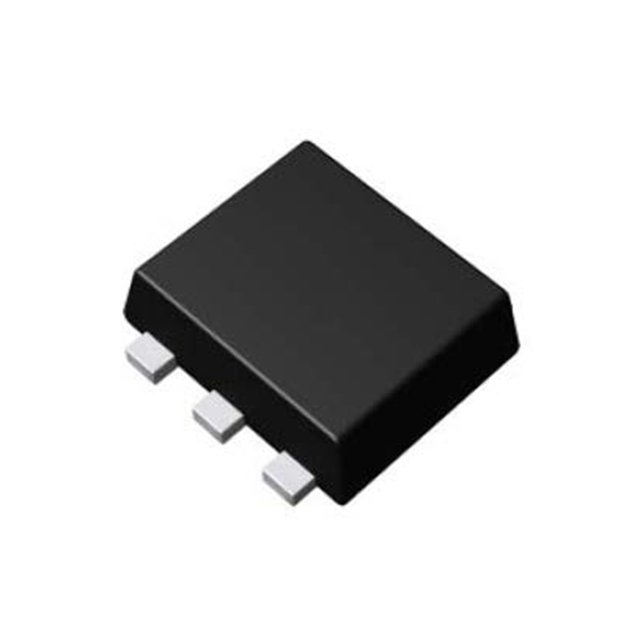

Package / Case		6-SMD, Flat Leads
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		1.5A (Ta)
Rds On (Max) @ Id, Vgs		260mOhm @ 1.3A, 4.5V
Power Dissipation (Max)		400mW (Ta)
Vgs(th) (Max) @ Id		1V @ 1mA
Supplier Device Package		6-WEMT
Drive Voltage (Max Rds On, Min Rds On)		1.5V, 4.5V
Vgs (Max)		±10V
Drain to Source Voltage (Vdss)		12 V
Gate Charge (Qg) (Max) @ Vgs		2.4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		290 pF @ 6 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
