RVQ040N05TR _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	RVQ040N05TR
Manufacturer	ROHM Semiconductor
Other Part Numbers	RVQ040N05TR-ND RVQ040N05CT-ND RVQ040N05DKR-ND RVQ040N05DKR RVQ040N05CT
Description	MOSFET N-CH 45V 4A TSMT6
Detailed Description	N-Channel 45 V 4A (Ta) 600mW (Ta) Surface Mount TSMT6 (SC-95)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

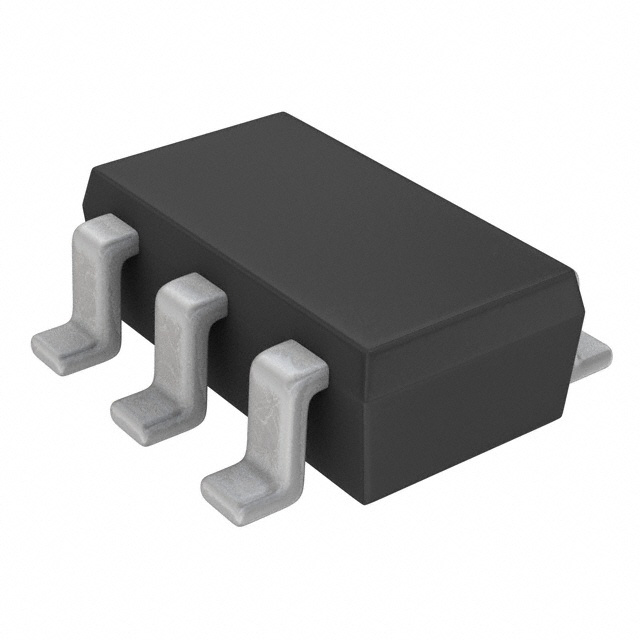

Package / Case		SOT-23-6 Thin, TSOT-23-6
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		4A (Ta)
Rds On (Max) @ Id, Vgs		53mOhm @ 4A, 10V
Power Dissipation (Max)		600mW (Ta)
Vgs(th) (Max) @ Id		2.5V @ 1mA
Supplier Device Package		TSMT6 (SC-95)
Drive Voltage (Max Rds On, Min Rds On)		4V, 10V
Vgs (Max)		21V
Drain to Source Voltage (Vdss)		45 V
Gate Charge (Qg) (Max) @ Vgs		8.8 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		530 pF @ 10 V

RESOURCE TYPE		LINK
Datasheets		TSMT6 TR Taping Spec
Datasheets		TSMT6 Part Marking
Datasheets		Transistor, MOSFET Flammability
Datasheets		TSMT6 Constitution Material List
Datasheets		Transistor Whisker Info
Datasheets		Transistor, MOSFET Level 1 MSL
Datasheets		TSMT6MS Inner Structure
Datasheets		TSMT Package Updates 24/Dec/2014
Datasheets		TSMT6 MOS Reliability Test
Datasheets		TSMT-6 Package Top

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
