RTQ045N03TR _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	RTQ045N03TR
Manufacturer	ROHM Semiconductor
Other Part Numbers	RTQ045N03TR-ND RTQ045N03CT-ND RTQ045N03DKR-ND RTQ045N03CT RTQ045N03MGTR RTQ045N03DKR
Description	MOSFET N-CH 30V 4.5A TSMT6
Detailed Description	N-Channel 30 V 4.5A (Ta) 1.25W (Ta) Surface Mount TSMT6 (SC-95)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs

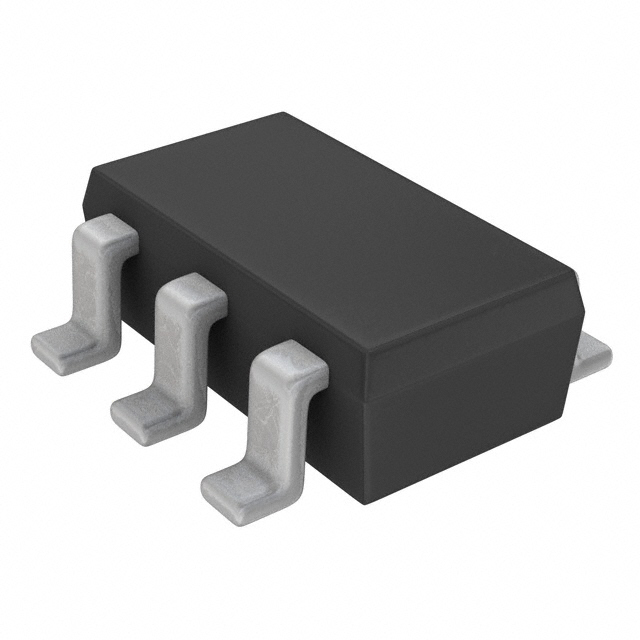

Package / Case		SOT-23-6 Thin, TSOT-23-6
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		4.5A (Ta)
Rds On (Max) @ Id, Vgs		43mOhm @ 4.5A, 4.5V
Power Dissipation (Max)		1.25W (Ta)
Vgs(th) (Max) @ Id		1.5V @ 1mA
Supplier Device Package		TSMT6 (SC-95)
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 4.5V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		10.7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		540 pF @ 10 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

Not recommended for new design, minimums may apply.
