RFD14N05LSM _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	RFD14N05LSM
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	RFD14N05LSM-ND RFD14N05LSM-NDR FAIFSCRFD14N05LSM 2156-RFD14N05LSM-OS
Description	MOSFET N-CH 50V 14A TO252AA
Detailed Description	N-Channel 50 V 14A (Tc) 48W (Tc) Surface Mount TO-252AA
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tube
Part Status		Active

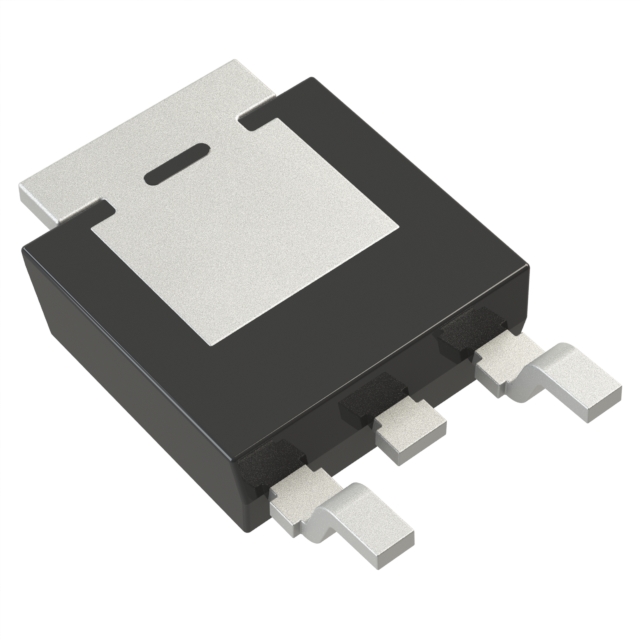

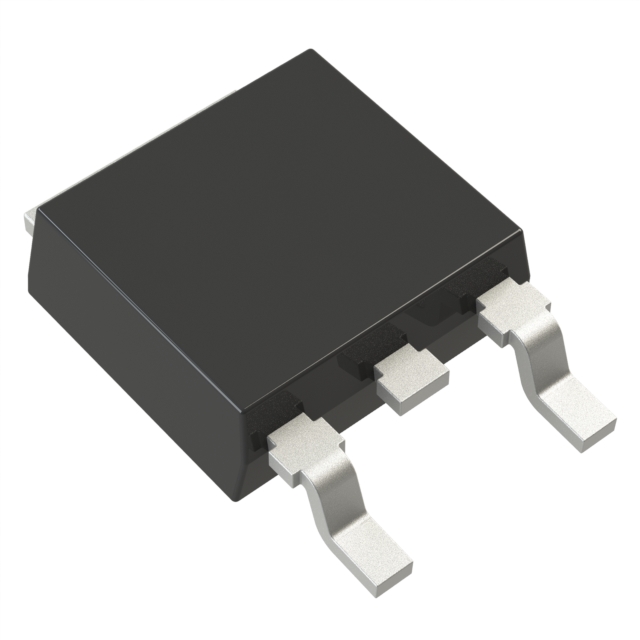

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		14A (Tc)
Rds On (Max) @ Id, Vgs		100mOhm @ 14A, 5V
Power Dissipation (Max)		48W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		TO-252AA
Drive Voltage (Max Rds On, Min Rds On)		5V
Vgs (Max)		±10V
Drain to Source Voltage (Vdss)		50 V
Gate Charge (Qg) (Max) @ Vgs		40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		670 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		RFD14N05LSM
Datasheets		Material Declaration RFD14N05LSM
Datasheets		onsemi REACH
Datasheets		onsemi RoHS
Datasheets		Description Chg 01/Apr/2016
Datasheets		Logo 17/Aug/2017
Datasheets		Mult PN Mold/Source 01/Dec/2023
Datasheets		Tape and Box/Reel Barcode Update 07/Aug/2014

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
