PHP83N03LT,127 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	PHP83N03LT,127
Manufacturer	NXP Semiconductors
Other Part Numbers	PHP83N03LT,127-ND PHP83N03LT 934056570127 PHP83N03LT-ND
Description	MOSFET N-CH 25V 75A TO220AB
Detailed Description	N-Channel 25 V 75A (Tc) 115W (Tc) Through Hole TO-220AB
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series		TrenchMOS™
Packaging		Tube
Part Status		Obsolete

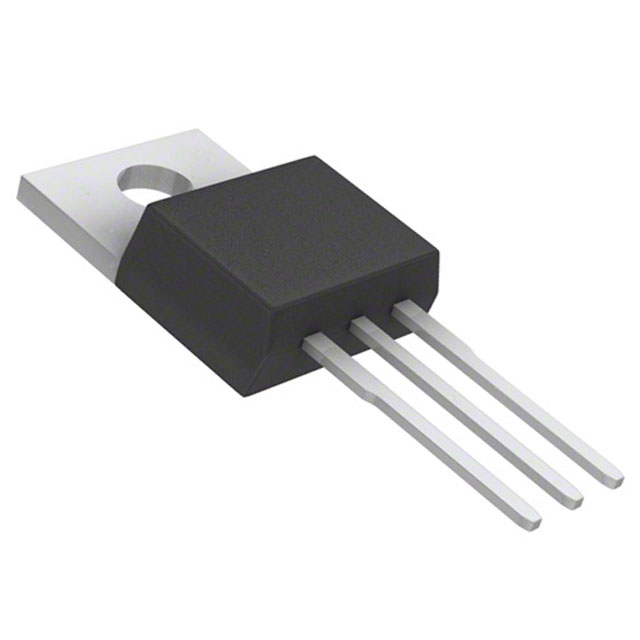

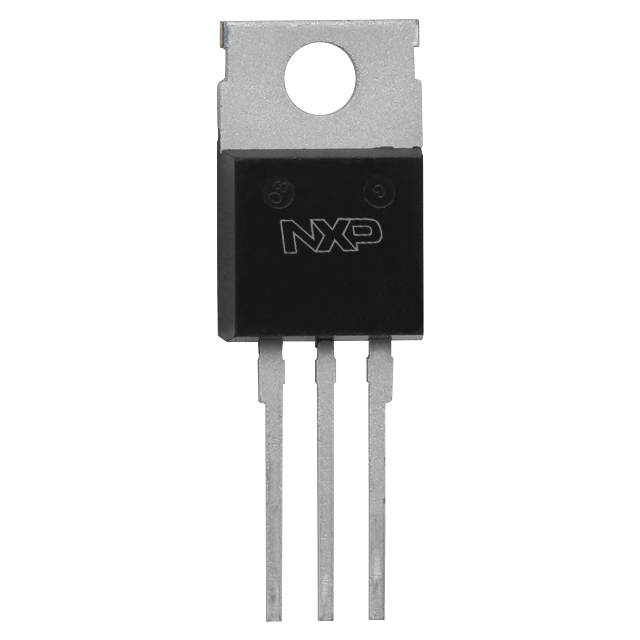

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		75A (Tc)
Rds On (Max) @ Id, Vgs		9mOhm @ 25A, 10V
Power Dissipation (Max)		115W (Tc)
Vgs(th) (Max) @ Id		2V @ 1mA
Supplier Device Package		TO-220AB
Drive Voltage (Max Rds On, Min Rds On)		5V, 10V
Vgs (Max)		±15V
Drain to Source Voltage (Vdss)		25 V
Gate Charge (Qg) (Max) @ Vgs		33 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		1660 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
