PHB160NQ08T,118 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	PHB160NQ08T,118
Manufacturer	NXP Semiconductors
Other Part Numbers	PHB160NQ08T,118-ND 934058283118 PHB160NQ08T /T3 PHB160NQ08T /T3-ND
Description	MOSFET N-CH 75V 75A D2PAK
Detailed Description	N-Channel 75 V 75A (Tc) 300W (Tc) Surface Mount D2PAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series		TrenchMOS™
Packaging		Tape & Reel (TR)
Part Status		Obsolete

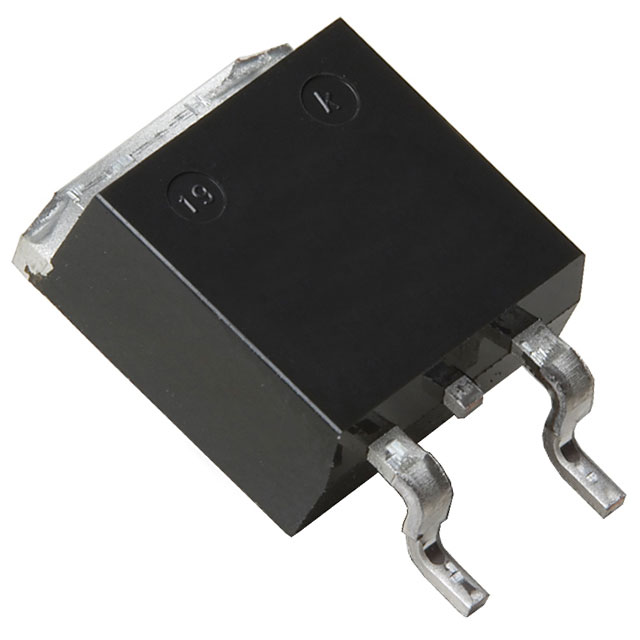

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		75A (Tc)
Rds On (Max) @ Id, Vgs		5.6mOhm @ 25A, 10V
Power Dissipation (Max)		300W (Tc)
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		D2PAK
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		75 V
Gate Charge (Qg) (Max) @ Vgs		91 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		5585 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
