Part Number	NTMSD6N303R2
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NTMSD6N303R2OS-ND 2156-NTMSD6N303R2-ONTR-ND ONSONSNTMSD6N303R2 NTMSD6N303R2OS 2156-NTMSD6N303R2
Description	MOSFET N-CH 30V 6A 8SOIC
Detailed Description	N-Channel 30 V 6A (Ta) 2W (Ta) Surface Mount 8-SOIC
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series		FETKY™
Packaging		Tape & Reel (TR)
Part Status		Obsolete

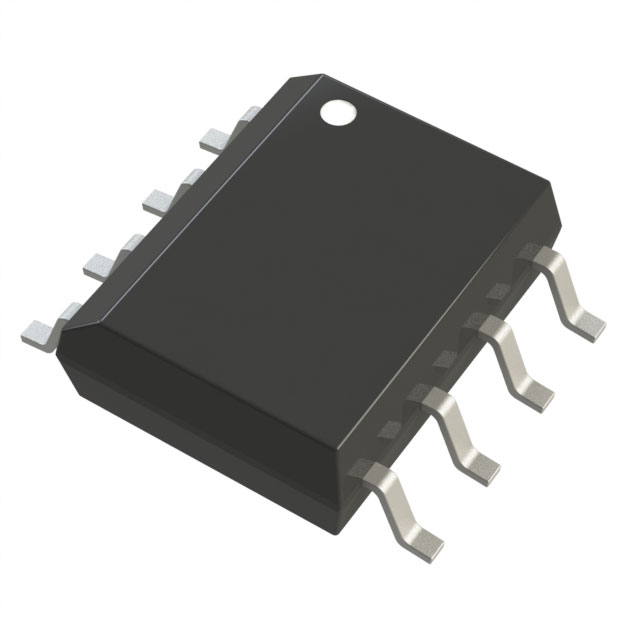

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		6A (Ta)
Rds On (Max) @ Id, Vgs		32mOhm @ 6A, 10V
FET Feature		Schottky Diode (Isolated)
Power Dissipation (Max)		2W (Ta)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		8-SOIC
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		30 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		950 pF @ 24 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
