Part Number	NP80N055MHE-S18-AY
Manufacturer	Renesas
Other Part Numbers	2156-NP80N055MHE-S18-AY-ND 2156-NP80N055MHE-S18-AY
Description	NP80N055MHE-S18-AY - SWITCHINGN-

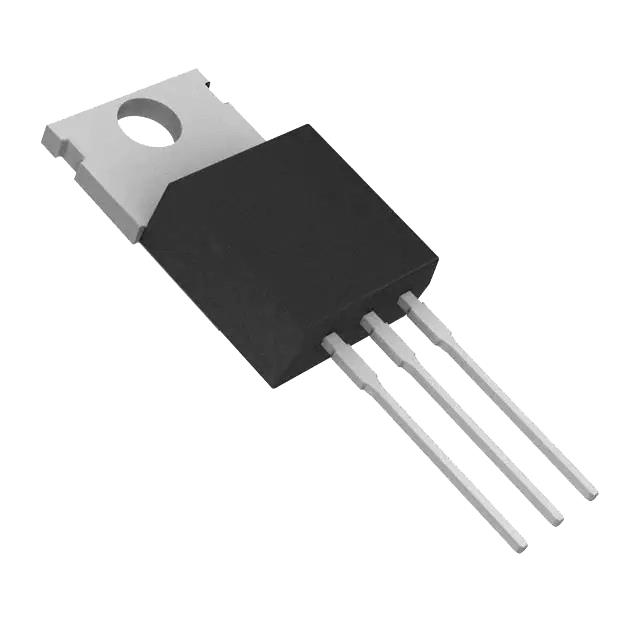

Detailed Description	N-Channel 55 V 80A (Tc) 1.8W (Ta), 120W (Tc) Through Hole MP-25K
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Renesas
Series
Packaging		Bulk
Part Status		Obsolete
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		175°C
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		80A (Tc)
Rds On (Max) @ Id, Vgs		11mOhm @ 40A, 10V
Power Dissipation (Max)		1.8W (Ta), 120W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		MP-25K
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		55 V
Gate Charge (Qg) (Max) @ Vgs		60 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		3600 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		NP80N055MHE-S18-AY

This product is no longer manufactured.
