Part Number |
LQA40T200C
|
---|---|
Manufacturer | Power Integrations |
Other Part Numbers |
596-1455-5-ND
596-1455-5
|
Description | DIODE ARRAY GP 200V 20A TO220AB |
Detailed Description | Diode Array 1 Pair Common Cathode 200 V 20A Through Hole TO-220-3 |
Manufacturer Standard Lead Time | 8 weeks |
Category | ||
---|---|---|
Manufacturer | Power Integrations | |
Series |
Qspeed™
|
|
Packaging |
Tube
|
|
Part Status | Active | |

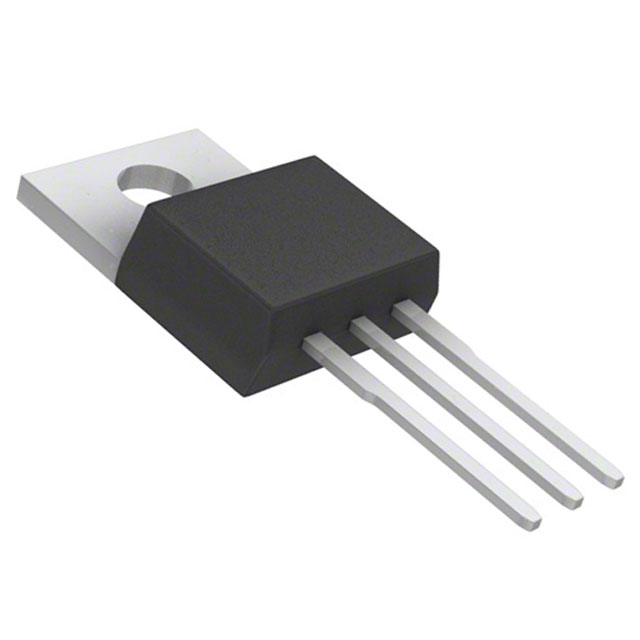

Package / Case | TO-220-3 | |
Mounting Type | Through Hole | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 17 ns | |
Technology | Standard | |
Diode Configuration | 1 Pair Common Cathode | |
Current - Average Rectified (Io) (per Diode) | 20A | |
Supplier Device Package | TO-220AB | |
Operating Temperature - Junction | -55°C ~ 150°C | |
Voltage - DC Reverse (Vr) (Max) | 200 V | |
Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 20 A | |
Current - Reverse Leakage @ Vr | 500 µA @ 200 V |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.10.0080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
