IXTP4N70X2M _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IXTP4N70X2M
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	238-IXTP4N70X2M-ND IXTP4N70X2M-ND -1402-IXTP4N70X2M 238-IXTP4N70X2M
Description	MOSFET N-CH 700V 4A TO220
Detailed Description	N-Channel 700 V 4A (Tc) 30W (Tc) Through Hole TO-220 Isolated Tab
Manufacturer Standard Lead Time	39 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Littelfuse / IXYS RF
Series		Ultra X2
Packaging		Tube
Part Status		Active

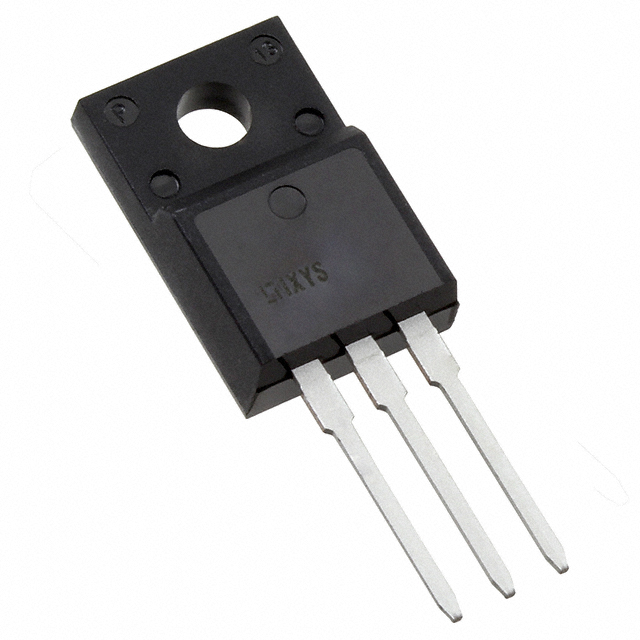

Package / Case		TO-220-3 Full Pack, Isolated Tab
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		4A (Tc)
Rds On (Max) @ Id, Vgs		850mOhm @ 2A, 10V
Power Dissipation (Max)		30W (Tc)
Vgs(th) (Max) @ Id		4.5V @ 250µA
Supplier Device Package		TO-220 Isolated Tab
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		700 V
Gate Charge (Qg) (Max) @ Vgs		11.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		386 pF @ 25 V

RESOURCE TYPE		LINK
Datasheets		IXTP4N70X2M
Datasheets		Multiple Devices Molding Compound 07/Sep/2020

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
