Part Number	IXTP1N80
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	IXTP1N80-ND
Description	MOSFET N-CH 800V 750MA TO220AB
Detailed Description	N-Channel 800 V 750mA (Tc) 40W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Littelfuse / IXYS RF
Series
Packaging		Box
Part Status		Obsolete

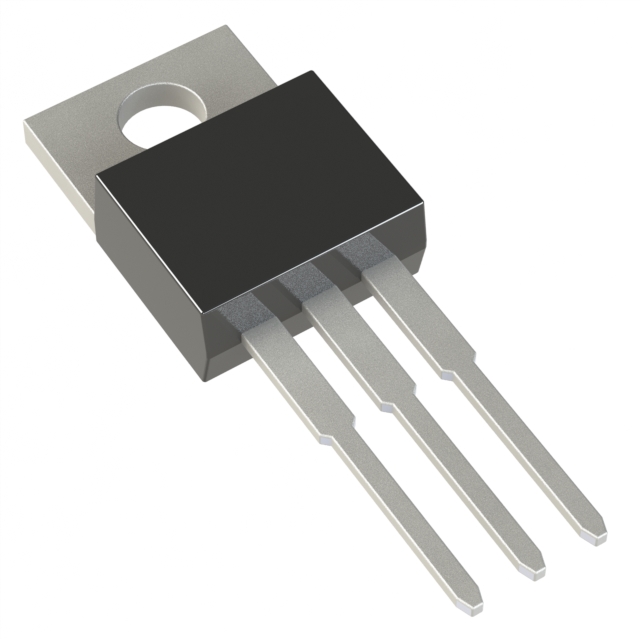

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		750mA (Tc)
Rds On (Max) @ Id, Vgs		11Ohm @ 500mA, 10V
Power Dissipation (Max)		40W (Tc)
Vgs(th) (Max) @ Id		4.5V @ 25µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		800 V
Gate Charge (Qg) (Max) @ Vgs		8.5 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		220 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
