IRLZ24NSPBF _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRLZ24NSPBF
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRLZ24NSPBF-ND SP001552914 *IRLZ24NSPBF
Description	MOSFET N-CH 55V 18A D2PAK
Detailed Description	N-Channel 55 V 18A (Tc) 3.8W (Ta), 45W (Tc) Surface Mount D2PAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tube
Part Status		Discontinued

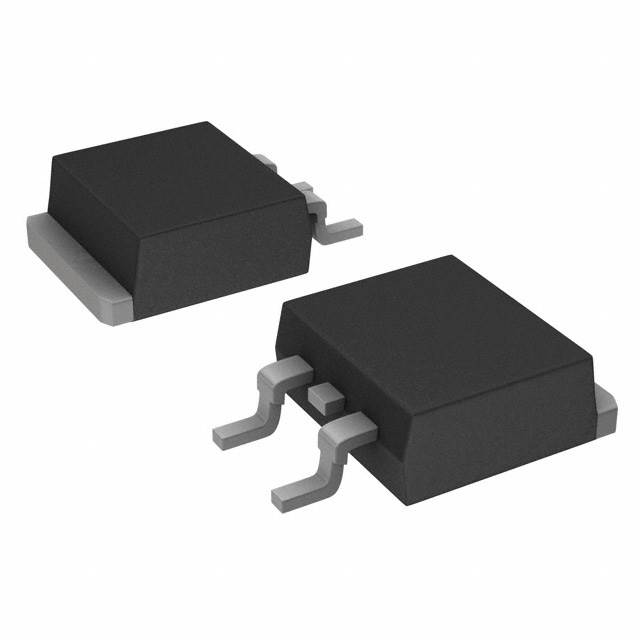

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		18A (Tc)
Rds On (Max) @ Id, Vgs		60mOhm @ 11A, 10V
Power Dissipation (Max)		3.8W (Ta), 45W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		D2PAK
Drive Voltage (Max Rds On, Min Rds On)		4V, 10V
Vgs (Max)		±16V
Drain to Source Voltage (Vdss)		55 V
Gate Charge (Qg) (Max) @ Vgs		15 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		480 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
