Part Number	IRLU2703
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRLU2703-ND *IRLU2703
Description	MOSFET N-CH 30V 23A I-PAK
Detailed Description	N-Channel 30 V 23A (Tc) 45W (Tc) Through Hole IPAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tube
Part Status		Obsolete

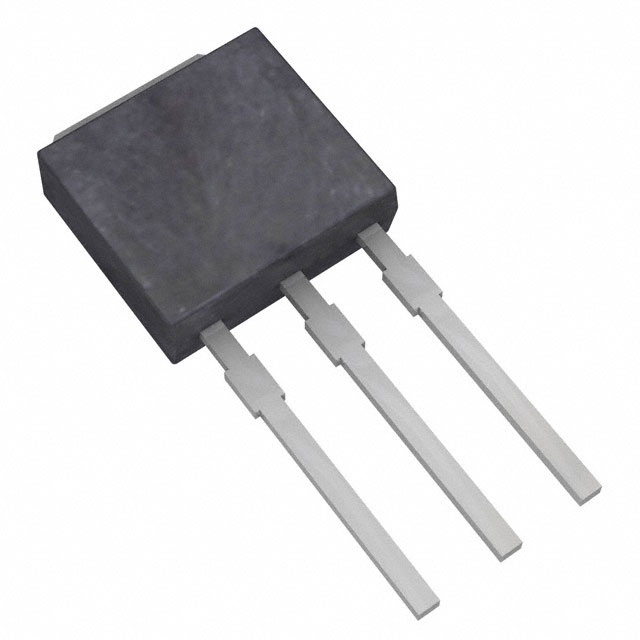

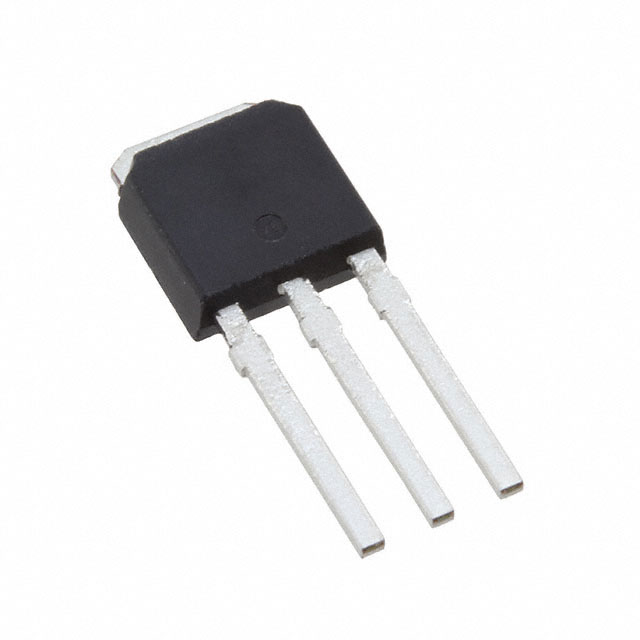

Package / Case		TO-251-3 Short Leads, IPak, TO-251AA
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		23A (Tc)
Rds On (Max) @ Id, Vgs		45mOhm @ 14A, 10V
Power Dissipation (Max)		45W (Tc)
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		IPAK
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±16V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		15 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		450 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
