IRLR3717TRLPBF _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRLR3717TRLPBF
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRLR3717TRLPBF-ND SP001567384
Description	MOSFET N-CH 20V 120A DPAK
Detailed Description	N-Channel 20 V 120A (Tc) 89W (Tc) Surface Mount TO-252AA (DPAK)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tape & Reel (TR)
Part Status		Obsolete

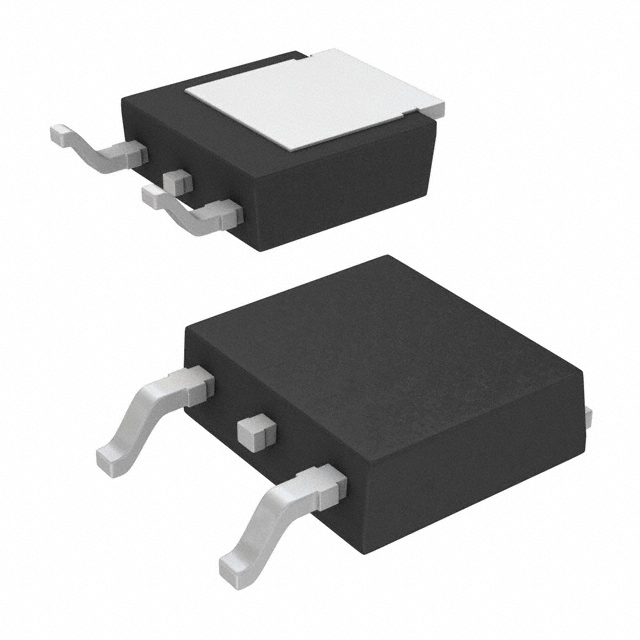

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		120A (Tc)
Rds On (Max) @ Id, Vgs		4mOhm @ 15A, 10V
Power Dissipation (Max)		89W (Tc)
Vgs(th) (Max) @ Id		2.45V @ 250µA
Supplier Device Package		TO-252AA (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		20 V
Gate Charge (Qg) (Max) @ Vgs		31 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		2830 pF @ 10 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
