Part Number	IRLR2705TR
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRLR2705TR-ND
Description	MOSFET N-CH 55V 28A DPAK
Detailed Description	N-Channel 55 V 28A (Tc) 68W (Tc) Surface Mount TO-252AA (DPAK)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tape & Reel (TR)
Part Status		Obsolete

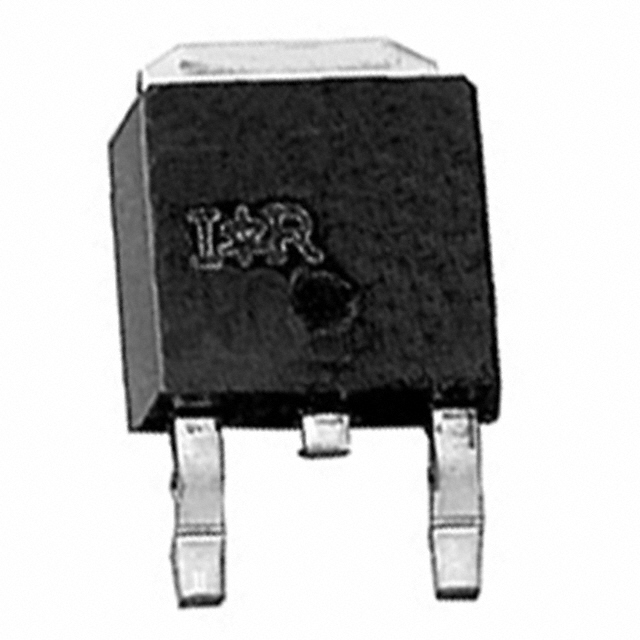

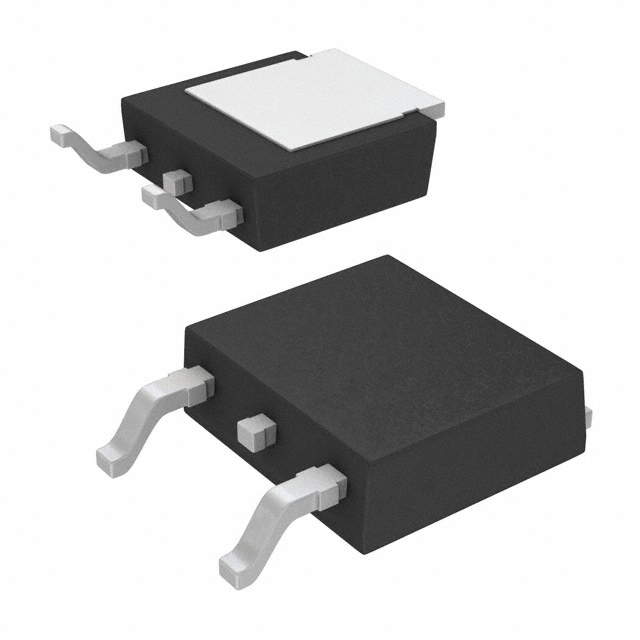

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		28A (Tc)
Rds On (Max) @ Id, Vgs		40mOhm @ 17A, 10V
Power Dissipation (Max)		68W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		TO-252AA (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		4V, 10V
Vgs (Max)		±16V
Drain to Source Voltage (Vdss)		55 V
Gate Charge (Qg) (Max) @ Vgs		25 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		880 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
