IRLI620G _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRLI620G
Manufacturer	Vishay / Siliconix
Other Part Numbers	IRLI620G-ND *IRLI620G
Description	MOSFET N-CH 200V 4A TO220-3
Detailed Description	N-Channel 200 V 4A (Tc) 30W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series
Packaging		Tube
Part Status		Obsolete

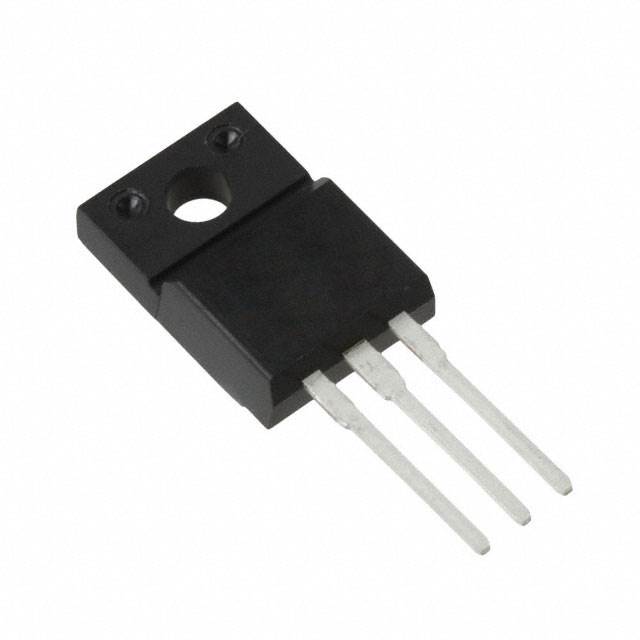

Package / Case		TO-220-3 Full Pack, Isolated Tab
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		4A (Tc)
Rds On (Max) @ Id, Vgs		800mOhm @ 2.4A, 5V
Power Dissipation (Max)		30W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		4V, 5V
Vgs (Max)		±10V
Drain to Source Voltage (Vdss)		200 V
Gate Charge (Qg) (Max) @ Vgs		16 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		360 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
