IRL3402 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRL3402
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRL3402-ND *IRL3402
Description	MOSFET N-CH 20V 85A TO220AB
Detailed Description	N-Channel 20 V 85A (Tc) 110W (Tc) Through Hole TO-220AB
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tube
Part Status		Obsolete

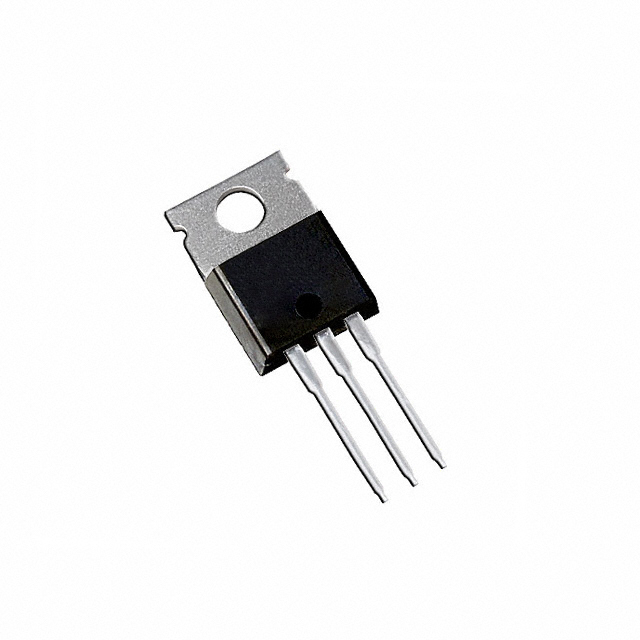

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		85A (Tc)
Rds On (Max) @ Id, Vgs		8mOhm @ 51A, 7V
Power Dissipation (Max)		110W (Tc)
Vgs(th) (Max) @ Id		700mV @ 250µA (Min)
Supplier Device Package		TO-220AB
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 7V
Vgs (Max)		±10V
Drain to Source Voltage (Vdss)		20 V
Gate Charge (Qg) (Max) @ Vgs		78 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		3300 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
