IRFH8316TRPBF-IR _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRFH8316TRPBF-IR
Manufacturer	International Rectifier
Other Part Numbers	2156-IRFH8316TRPBF-IR-ND 2156-IRFH8316TRPBF-IR IFEIRFIRFH8316TRPBF
Description	IRFH8316 - HEXFET POWER MOSFET
Detailed Description	N-Channel 30 V 27A (Ta), 50A (Tc) 3.6W (Ta), 59W (Tc) Surface Mount 8-PQFN (5x6)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		International Rectifier
Series		HEXFET®
Packaging		Bulk
Part Status		Active

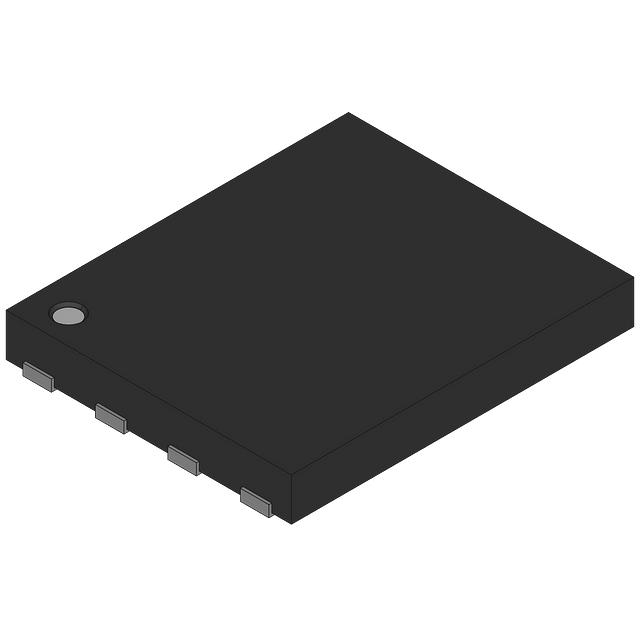

Package / Case		8-PowerTDFN
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		27A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs		2.95mOhm @ 20A, 10V
Power Dissipation (Max)		3.6W (Ta), 59W (Tc)
Vgs(th) (Max) @ Id		2.2V @ 50µA
Supplier Device Package		8-PQFN (5x6)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		59 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		3610 pF @ 10 V

RESOURCE TYPE		LINK
Datasheets		IRFH8316TRPBF-IR

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		Not applicable
