IRFH7921TRPBF _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRFH7921TRPBF
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRFH7921TRPBFTR-ND IRFH7921TRPBFCT-ND IRFH7921TRPBFDKR-ND IRFH7921TRPBFTR IFEINFIRFH7921TRPBF IRFH7921TRPBFCT SP001556502 2156-IRFH7921TRPBF IRFH7921TRPBFDKR
Description	MOSFET N-CH 30V 15A/34A PQFN
Detailed Description	N-Channel 30 V 15A (Ta), 34A (Tc) 3.1W (Ta) Surface Mount PQFN (5x6) Single Die
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

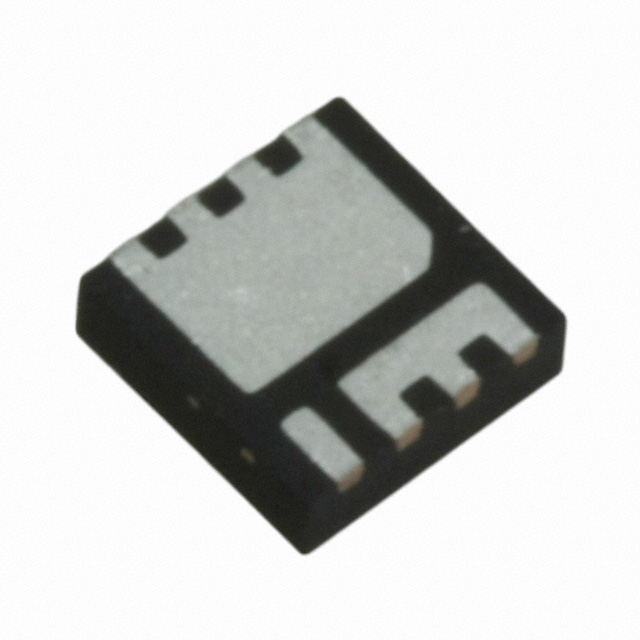

Package / Case		8-PowerVDFN
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		15A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs		8.5mOhm @ 15A, 10V
Power Dissipation (Max)		3.1W (Ta)
Vgs(th) (Max) @ Id		2.35V @ 25µA
Supplier Device Package		PQFN (5x6) Single Die
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		14 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		1210 pF @ 15 V

RESOURCE TYPE		LINK
Datasheets		IRFH7921TRPBF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
