IRF9640S _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRF9640S
Manufacturer	Vishay / Siliconix
Other Part Numbers	IRF9640S-ND *IRF9640S
Description	MOSFET P-CH 200V 11A D2PAK
Detailed Description	P-Channel 200 V 11A (Tc) 3W (Ta), 125W (Tc) Surface Mount TO-263 (D2PAK)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Vishay / Siliconix
Series
Packaging		Tube
Part Status		Obsolete

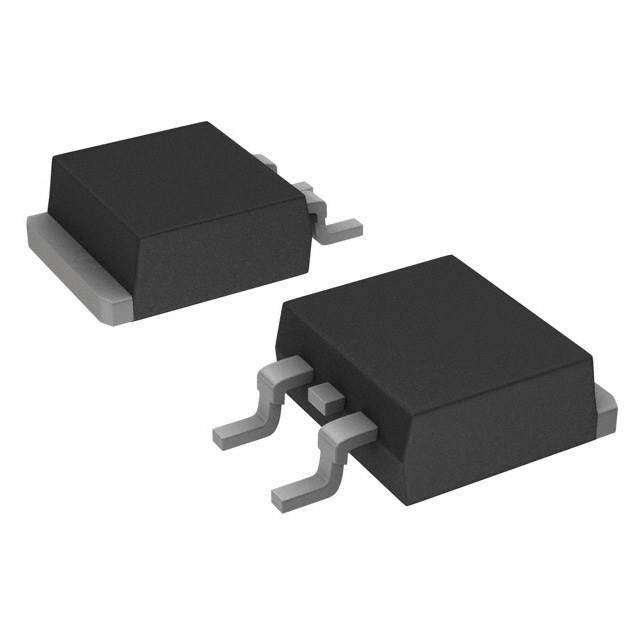

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		11A (Tc)
Rds On (Max) @ Id, Vgs		500mOhm @ 6.6A, 10V
Power Dissipation (Max)		3W (Ta), 125W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-263 (D2PAK)
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		200 V
Gate Charge (Qg) (Max) @ Vgs		44 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1200 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
