Part Number	IRF7603TR
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRF7603CT-ND IRF7603CT IRF7603DKR IRF7603 SP001566216 *IRF7603TR
Description	MOSFET N-CH 30V 5.6A MICRO8
Detailed Description	N-Channel 30 V 5.6A (Ta) Surface Mount Micro8™
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series
Packaging		Cut Tape (CT)
Part Status		Obsolete

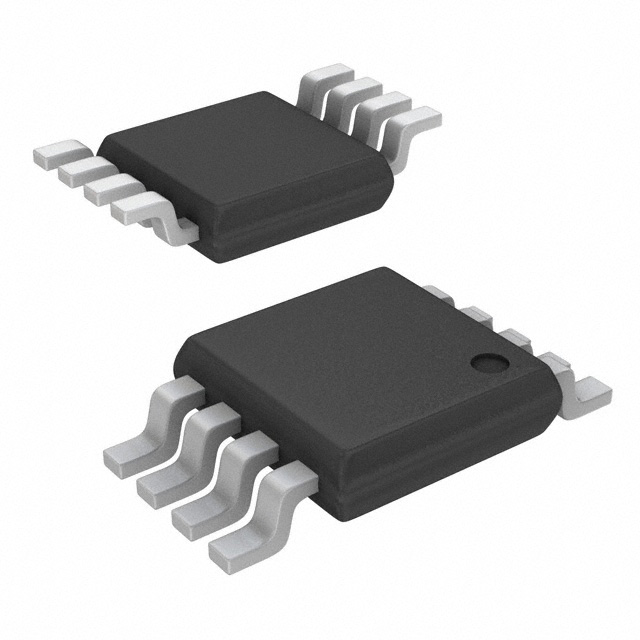

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		5.6A (Ta)
Rds On (Max) @ Id, Vgs		35mOhm @ 3.7A, 10V
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		Micro8™
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		27 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		520 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
