IRF7526D1TR _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRF7526D1TR
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRF7526D1TR-ND
Description	MOSFET P-CH 30V 2A MICRO8
Detailed Description	P-Channel 30 V 2A (Ta) 1.25W (Ta) Surface Mount Micro8™
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		FETKY™
Packaging		Tape & Reel (TR)
Part Status		Obsolete

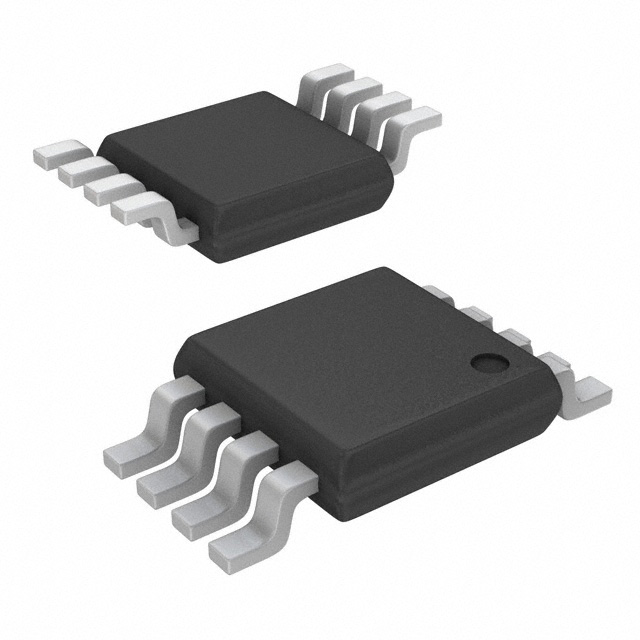

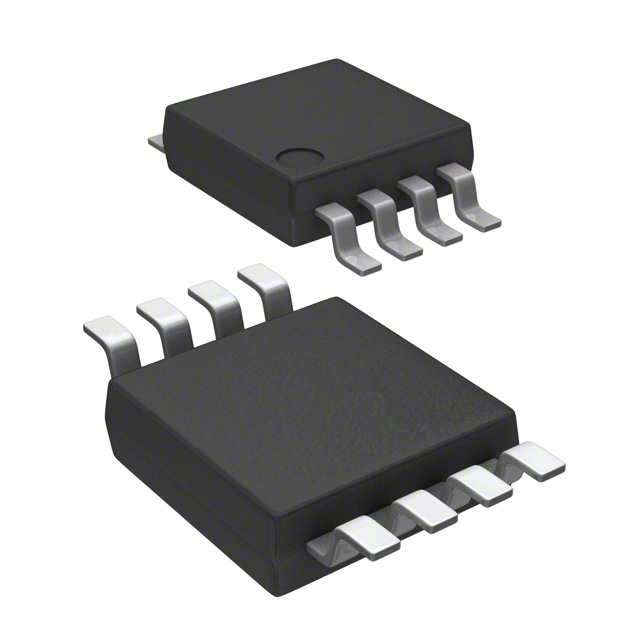

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Ta)
Rds On (Max) @ Id, Vgs		200mOhm @ 1.2A, 10V
FET Feature		Schottky Diode (Isolated)
Power Dissipation (Max)		1.25W (Ta)
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		Micro8™
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		11 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		180 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
