IRF7413A _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRF7413A
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IRF7413A-ND
Description	MOSFET N-CH 30V 12A 8SO
Detailed Description	N-Channel 30 V 12A (Ta) 2.5W (Ta) Surface Mount 8-SO
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		HEXFET®
Packaging		Tube
Part Status		Obsolete

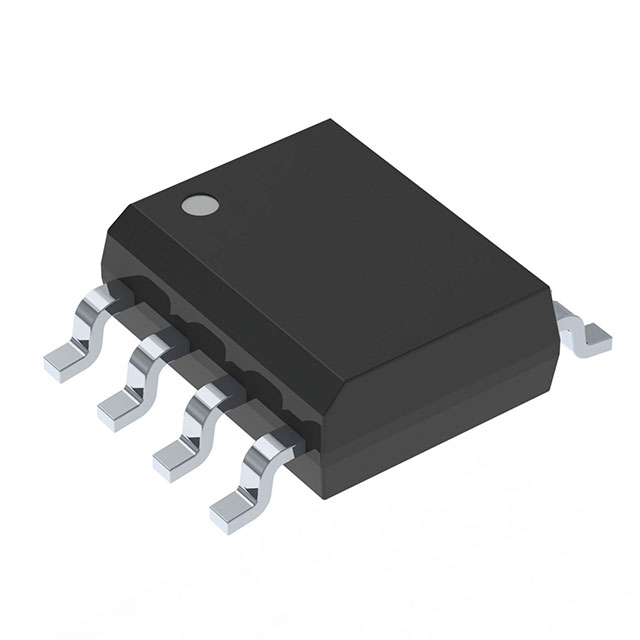

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		12A (Ta)
Rds On (Max) @ Id, Vgs		13.5mOhm @ 6.6A, 10V
Power Dissipation (Max)		2.5W (Ta)
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		8-SO
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		79 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1800 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
