IRF6892STRPBF _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IRF6892STRPBF
Manufacturer	International Rectifier
Other Part Numbers	2156-IRF6892STRPBF-ND 2156-IRF6892STRPBF INFIRFIRF6892STRPBF
Description	25V 999A DIRECTFET-LV
Detailed Description	N-Channel 25 V 28A (Ta), 125A (Tc) 2.1W (Ta), 42W (Tc) Surface Mount DIRECTFET™ S3C

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		International Rectifier
Series		HEXFET®
Packaging		Bulk
Part Status		Active

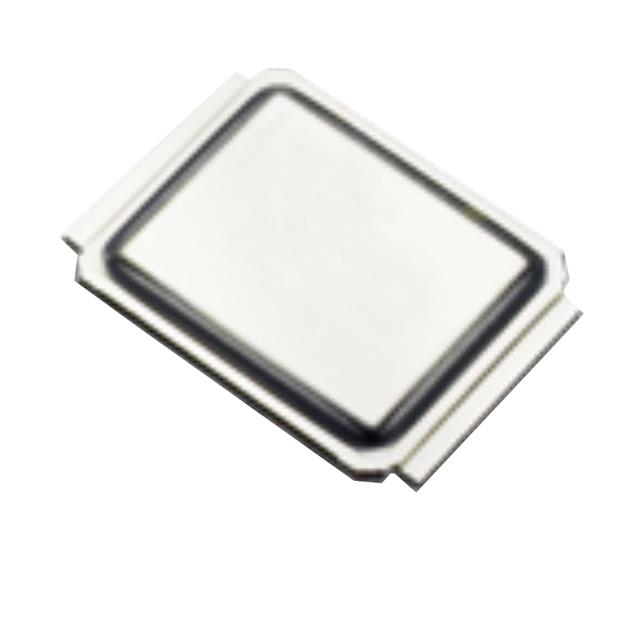

Package / Case		DirectFET™ Isometric S3C
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		28A (Ta), 125A (Tc)
Rds On (Max) @ Id, Vgs		1.7mOhm @ 28A, 10V
Power Dissipation (Max)		2.1W (Ta), 42W (Tc)
Vgs(th) (Max) @ Id		2.1V @ 50µA
Supplier Device Package		DIRECTFET™ S3C
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±16V
Drain to Source Voltage (Vdss)		25 V
Gate Charge (Qg) (Max) @ Vgs		25 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		2510 pF @ 13 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		Not applicable
