IPP06N03LA _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IPP06N03LA
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IPP06N03LAIN-ND IPP06N03LAIN-NDR IPP06N03LAIN 2156-IPP06N03LA-IT SP000014025 IFEINFIPP06N03LA IPP06N03LAXTIN IPP06N03LAX IPP06N03LAXTIN-ND
Description	MOSFET N-CH 25V 50A TO220-3
Detailed Description	N-Channel 25 V 50A (Tc) 83W (Tc) Through Hole PG-TO220-3
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		OptiMOS™
Packaging		Tube
Part Status		Obsolete

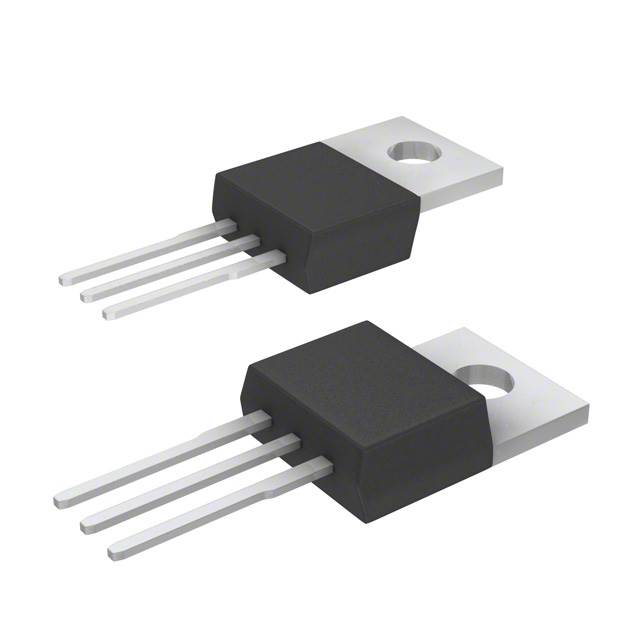

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		50A (Tc)
Rds On (Max) @ Id, Vgs		6.2mOhm @ 30A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		2V @ 40µA
Supplier Device Package		PG-TO220-3
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		25 V
Gate Charge (Qg) (Max) @ Vgs		22 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		2653 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
