IPF06N03LA G _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	IPF06N03LA G
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	IPF06N03LAG-ND IPF06N03LA G-ND IPF06N03LAG IPF06N03LAGXT SP000017607
Description	MOSFET N-CH 25V 50A TO252-3
Detailed Description	N-Channel 25 V 50A (Tc) 83W (Tc) Surface Mount PG-TO252-3-23
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		OptiMOS™
Packaging		Tape & Reel (TR)
Part Status		Obsolete

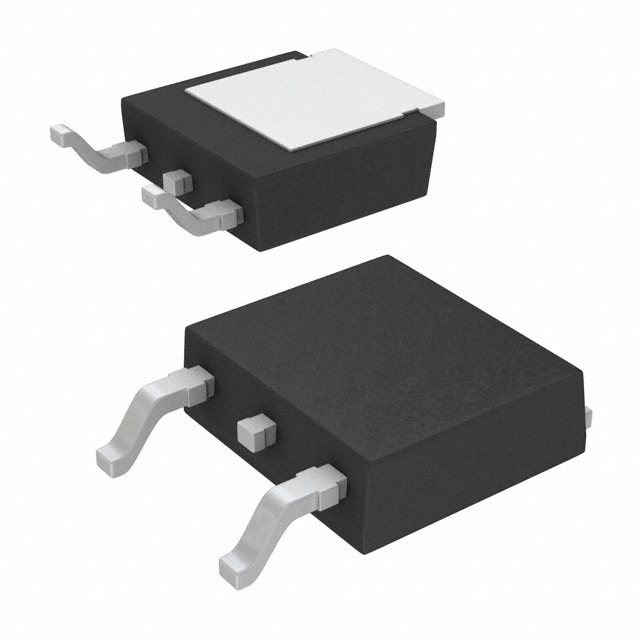

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		50A (Tc)
Rds On (Max) @ Id, Vgs		5.7mOhm @ 30A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		2V @ 40µA
Supplier Device Package		PG-TO252-3-23
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		25 V
Gate Charge (Qg) (Max) @ Vgs		22 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		2653 pF @ 15 V

RESOURCE TYPE		LINK
Datasheets		Part Number Guide

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected

This product is no longer manufactured.
