Part Number |

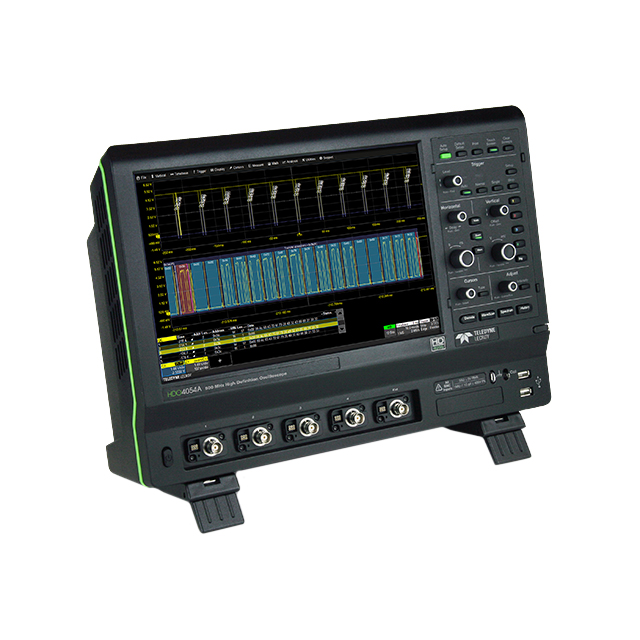

HDO4054A
|
---|---|
Manufacturer | Teledyne LeCroy |
Other Part Numbers |
HDO4054A-ND
|
Description | 500 MHZ, 2.5 GS/S (10 GS/S WITH |
Detailed Description | 500 MHz Bench, Digital Oscilloscopes Ethernet, GPIB, USB Interface LCD - Color (Touch) Display 4 Analog Channel 400V Record, Playback, Save, Trend |
Manufacturer Standard Lead Time | 8 weeks |
Category | ||
---|---|---|
Manufacturer | Teledyne LeCroy | |
Series |
HDO4000A Maui
|
|
Packaging |
Box
|
|
Part Status | Active | |
Display Type | LCD - Color (Touch) | |
Function | Record, Playback, Save, Trend | |
Memory Size | 12.5Mpts | |
Interface | Ethernet, GPIB, USB | |
Type | Bench, Digital | |
Voltage - Supply | 100 ~ 240VAC | |
Sampling Rate (Per Second) | 10G | |
Voltage - Input (Max) | 400V | |
Channels | 4 Analog | |
Input Impedance | 1M - 12pF | |
Probe Type | Passive 10:1 (4) | |
Bandwidth | 500 MHz | |
Rise Time (Typ) | 700 ps |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | HDO4054A | |
Product Training Modules | Power Analysis Software | |
Video File | 12 bit High Definition Oscilloscope - Teledyne LeCroy HDO | |
Video File | Trigger Controls - Teledyne LeCroy HDO | |
HTML Datasheet | HDO4000A Datasheet |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | 3A992G | |
HTSUS | 9030.20.1000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH info available upon request | |
RoHS Status | ROHS3 Compliant |
