Part Number	GKI03061
Manufacturer	Sanken Electric Co., Ltd.
Other Part Numbers	GKI03061TR-ND GKI03061CT-ND GKI03061DKR-ND GKI03061TR GKI03061CT GKI03061 DK GKI03061DKR
Description	MOSFET N-CH 30V 14A 8DFN
Detailed Description	N-Channel 30 V 14A (Ta) 3.1W (Ta), 46W (Tc) Surface Mount 8-DFN (5x6)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanken Electric Co., Ltd.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

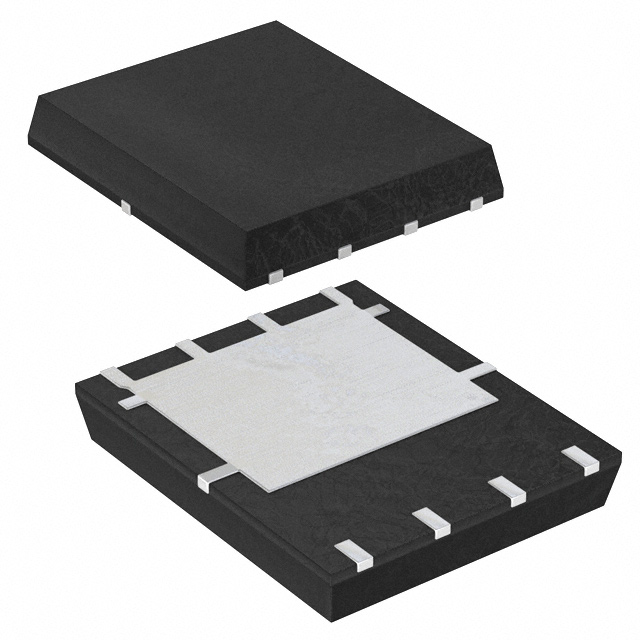

Package / Case		8-PowerTDFN
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		14A (Ta)
Rds On (Max) @ Id, Vgs		6.2mOhm @ 31A, 10V
Power Dissipation (Max)		3.1W (Ta), 46W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 350µA
Supplier Device Package		8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		24.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1480 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
