FQP9N15 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FQP9N15
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FQP9N15-FS-ND 2156-FQP9N15-FS FAIFSCFQP9N15

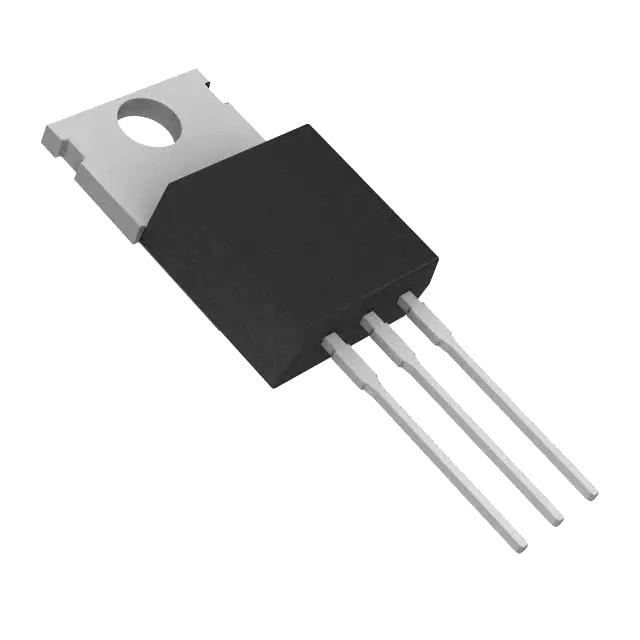

Description	MOSFET N-CH 150V 9A TO220-3
Detailed Description	N-Channel 150 V 9A (Tc) 75W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		QFET®
Packaging		Tube
Part Status		Obsolete
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		9A (Tc)
Rds On (Max) @ Id, Vgs		400mOhm @ 4.5A, 10V
Power Dissipation (Max)		75W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±25V
Drain to Source Voltage (Vdss)		150 V
Gate Charge (Qg) (Max) @ Vgs		13 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		410 pF @ 25 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
