Part Number	FQP7P06
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FQP7P06-ND 2156-FQP7P06 ONSONSFQP7P06
Description	POWER FIELD-EFFECT TRANSISTOR, 7
Detailed Description	P-Channel 60 V 7A (Tc) 45W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Fairchild Semiconductor
Series		QFET®
Packaging		Bulk
Part Status		Active

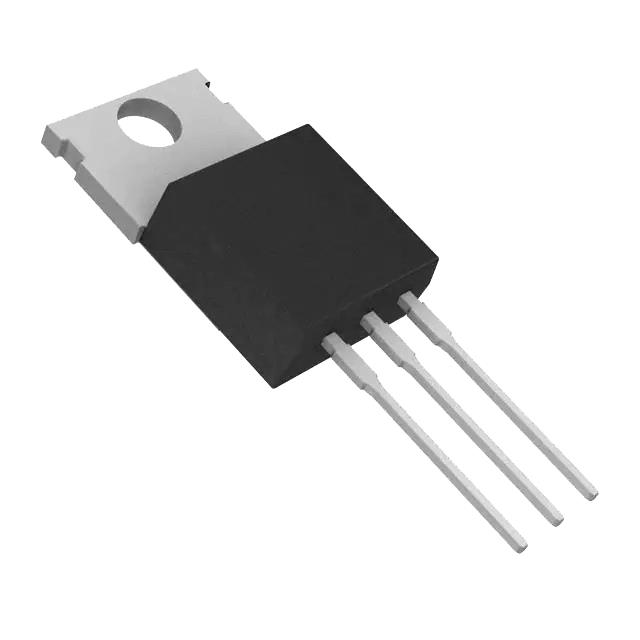

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		7A (Tc)
Rds On (Max) @ Id, Vgs		410mOhm @ 3.5A, 10V
Power Dissipation (Max)		45W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±25V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		8.2 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		295 pF @ 25 V
