FKP330C

Part Number
FKP330C
Manufacturer Sanken Electric Co., Ltd.
Other Part Numbers
FKP330C-ND
FKP330C DK
Description MOSFET N-CH 330V 30A TO3P
Detailed Description N-Channel 330 V 30A (Ta) 85W (Tc) Through Hole TO-3P

Product Attributes

Category
Manufacturer Sanken Electric Co., Ltd.
Series
Packaging
Bulk
Part Status Obsolete

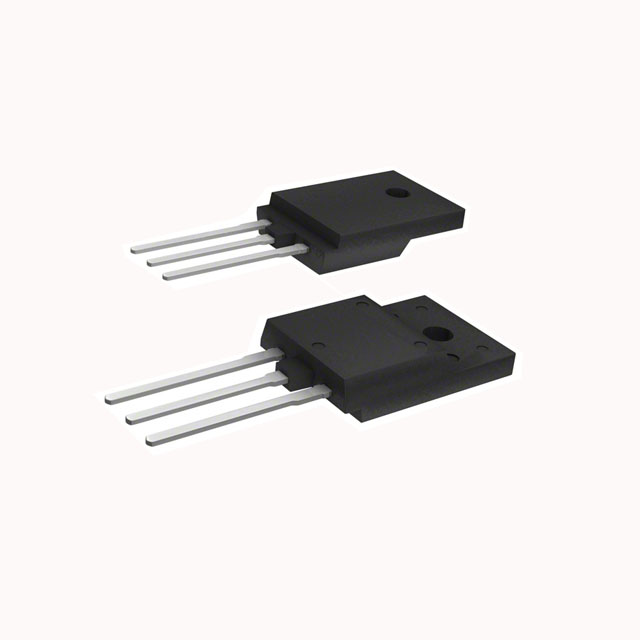

Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Operating Temperature 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 30A (Ta)
Rds On (Max) @ Id, Vgs 63mOhm @ 15A, 10V
Power Dissipation (Max) 85W (Tc)
Vgs(th) (Max) @ Id 4.5V @ 1mA
Supplier Device Package TO-3P
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs (Max) ±30V
Drain to Source Voltage (Vdss) 330 V
Input Capacitance (Ciss) (Max) @ Vds 4600 pF @ 25 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
