FKI07117 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	FKI07117
Manufacturer	Sanken Electric Co., Ltd.
Other Part Numbers	FKI07117-ND FKI07117 DK FKI07111 FKI07111-ND
Description	MOSFET N-CH 75V 42A TO220F
Detailed Description	N-Channel 75 V 42A (Tc) 40W (Tc) Through Hole TO-220F

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanken Electric Co., Ltd.
Series
Packaging		Tube
Part Status		Obsolete

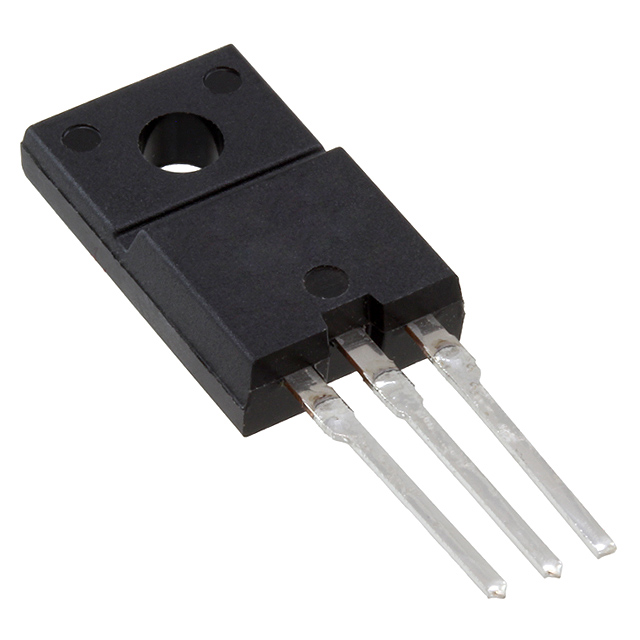

Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		42A (Tc)
Rds On (Max) @ Id, Vgs		9.7mOhm @ 31.2A, 10V
Power Dissipation (Max)		40W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 1mA
Supplier Device Package		TO-220F
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		75 V
Gate Charge (Qg) (Max) @ Vgs		54 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		4040 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
