FFAF20U60DNTU

Part Number
FFAF20U60DNTU
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
FFAF20U60DNTU-ND
Description DIODE ARRAY GP 600V 20A TO3PF
Detailed Description Diode Array 1 Pair Common Cathode 600 V 20A Through Hole TO-3P-3 Full Pack
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tube
Part Status Obsolete

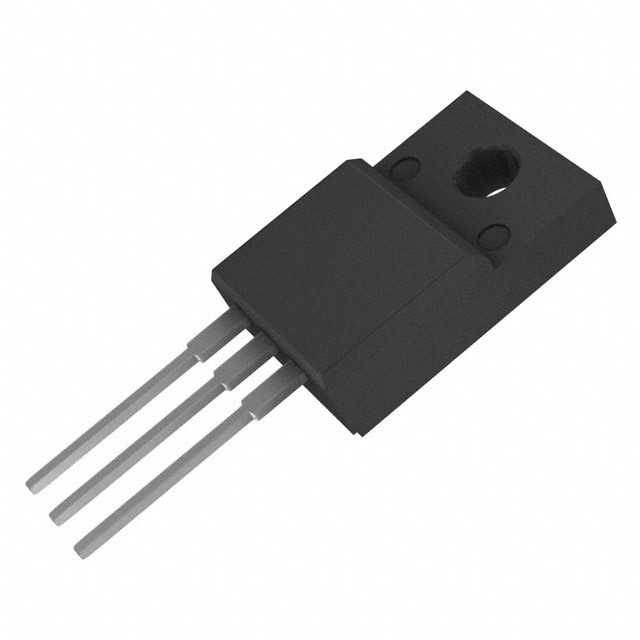

Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 90 ns
Technology Standard
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 20A
Supplier Device Package TO-3PF
Operating Temperature - Junction -65°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 2.2 V @ 20 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK
Datasheets FFAF20U60DNTU
Datasheets onsemi RoHS
Datasheets onsemi REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
